Panasonic recommends a PCB layout with a minimum of 1.5 mm clearance around the component, and a land pattern with a 1.2 mm diameter pad for the terminals. A detailed layout guide can be found in the Panasonic application note AN10074.
The JW2ASN-DC12V is designed to operate in temperatures ranging from -40°C to 125°C and humidity up to 85% RH. However, it's recommended to derate the component's performance by 1.5% per °C above 85°C. For extreme environmental conditions, consult Panasonic's reliability handbook for guidance.
Panasonic recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a cooling rate of 4°C/s. A detailed soldering profile can be found in the Panasonic application note AN10075.
Yes, the JW2ASN-DC12V is AEC-Q200 qualified, making it suitable for automotive applications. However, it's essential to consult Panasonic's automotive application guide for specific requirements and guidelines.
The JW2ASN-DC12V has a typical lifespan of 10,000 hours under normal operating conditions (25°C, 50% RH, and 12V DC). However, this can vary depending on the application and environmental conditions. Consult Panasonic's reliability handbook for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JW2aSN-DC12V Overview

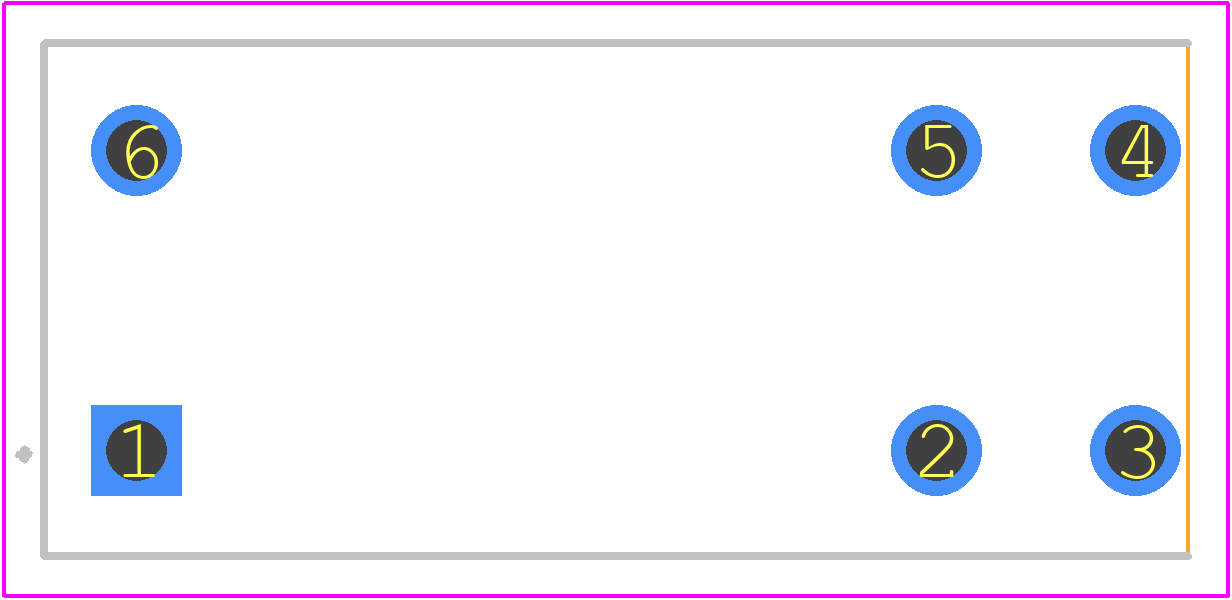

Use the download button to access the JW2aSN-DC12V schematic symbol, PCB footprint, and 3D model.
