Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
To ensure reliability in high-temperature applications, it's crucial to follow Panasonic's recommended derating guidelines, ensure proper thermal management, and consider using a heat sink or thermal interface material if necessary.
JW2ASN-DC24V is a sensitive electronic component and requires proper ESD protection during handling and assembly. Follow standard ESD precautions, such as using an ESD wrist strap, mat, or workstation, and handle the component by the body or pins to prevent damage.
While JW2ASN-DC24V is designed to be robust, it's essential to consider the environmental conditions and potential vibrations or shocks that may affect the component's performance and reliability. Consult Panasonic's application notes or contact their support team for guidance on using JW2ASN-DC24V in such environments.
Store JW2ASN-DC24V in a dry, cool place, away from direct sunlight and moisture. Avoid exposing the component to extreme temperatures, humidity, or physical stress during storage and handling.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JW2aSN-DC24V Overview

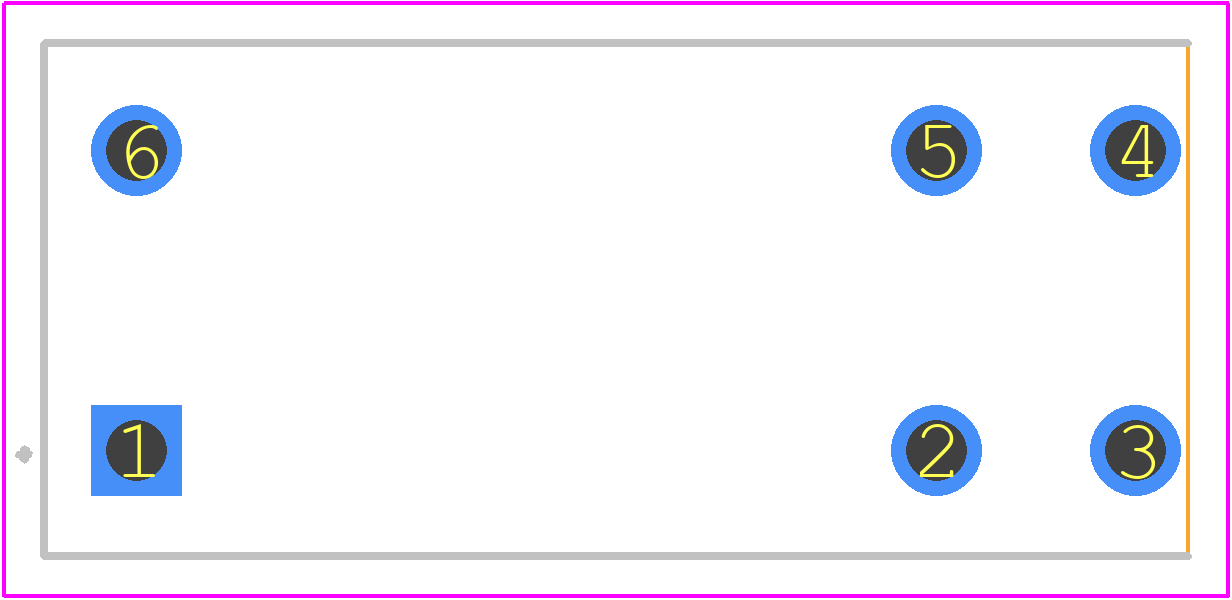

Use the download button to access the JW2aSN-DC24V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JW2aS,
or try a keyword search, such as Power/Signal Relays
