JW2HN-DC24V - Panasonic

Description: 1 Form A/1 Form C/2 Form A/2 Form C, 5 A/10 A, Power relays

Download JW2HN-DC24V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

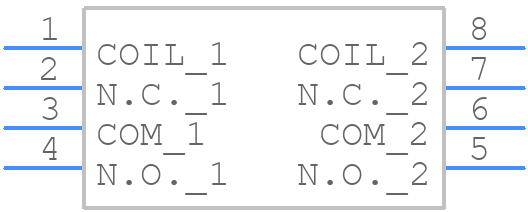

JW2HN-DC24V - Panasonic - PCB symbol
click to zoom
PCB Footprints

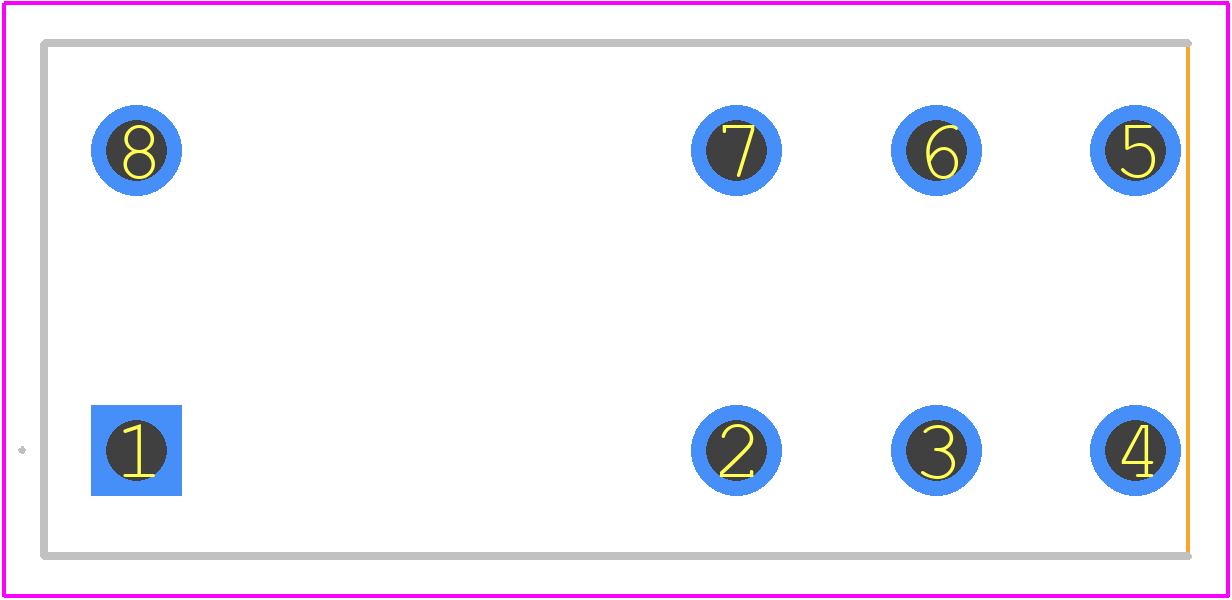

JW2HN-DC24V - Panasonic PCB footprint - Other - Other - JW2x
click to zoom
3D Models
JW2HN-DC24V - Panasonic - 3D model - Other - JW2x
click to zoom

JW2HN-DC24V Details

  • Manufacturer Part Number:

    JW2HN-DC24V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.25

  • Body Breadth:

    12.8 mm

  • Body Height:

    20.4 mm

  • Body Length or Diameter:

    28.6 mm

  • Coil Current(DC)-Max:

    0.022 A

  • Coil Operate Voltage(DC):

    16.8 V

  • Coil Power:

    530 mW

  • Coil Release Voltage(DC):

    2.4 V

  • Coil Resistance:

    1100 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    5A@250VAC

  • Contact Current(AC)-Max:

    5 A

  • Contact Current(DC)-Max:

    5 A

  • Contact (DC) Max Rating R Load:

    5A@30VDC

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    28.6mm x 12.8mm x 20.4mm

  • Reference Standard:

    CSA; FIMKO; SEMKO; SEV; TUV; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    5 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

JW2HN-DC24V Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper mounting, thermal management, and electrical performance.
  • The JW2HN-DC24V relay coil requires a voltage of 24V DC and a current of around 100mA. Ensure your design provides a suitable power supply and current limiting resistors to prevent overheating or damage to the relay.
  • The maximum switching frequency for JW2HN-DC24V is typically around 20-30 Hz. Exceeding this frequency may lead to reduced relay lifespan or premature failure. Consult Panasonic's application notes for specific guidance on switching frequency and duty cycle.
  • To ensure reliable contact switching and minimize contact bounce, use a suitable debouncing circuit or software algorithm in your design. Additionally, consider using a relay driver IC or a dedicated relay module with built-in debouncing and protection features.
  • The JW2HN-DC24V relay is designed to operate in a temperature range of -40°C to 85°C, with a relative humidity of 60% or less. Ensure your design operates within these conditions to ensure reliable performance and longevity.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JW2HN-DC24V Overview

Use the download button to access the JW2HN-DC24V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JW2HN, or try a keyword search, such as Power/Signal Relays
