JW2SN-DC6V - Panasonic

Description: 1 Form A/1 Form C/2 Form A/2 Form C, 5 A/10 A, Power relays

Download JW2SN-DC6V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

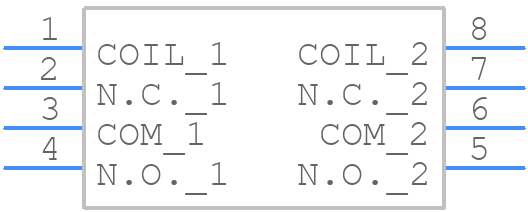

PCB Footprints

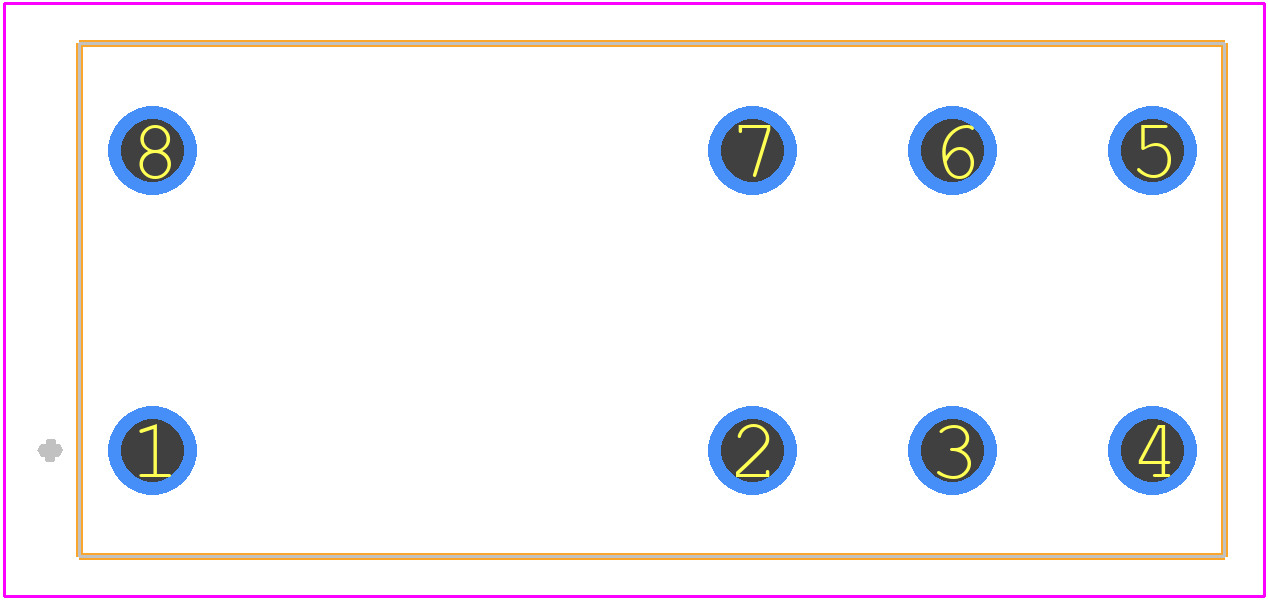

JW2SN-DC6V - Panasonic PCB footprint - Other - Other - JW2SN-DC6V-2
click to zoom
3D Models
JW2SN-DC6V - Panasonic  - 3D model - Other - JW2SN-DC6V-2
click to zoom

JW2SN-DC6V Details

  • Manufacturer Part Number:

    JW2SN-DC6V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.78

  • Body Breadth:

    12.8 mm

  • Body Height:

    20.4 mm

  • Body Length or Diameter:

    28.6 mm

  • Coil Current(DC)-Max:

    0.088 A

  • Coil Operate Voltage(DC):

    4.2 V

  • Coil Power:

    530 mW

  • Coil Release Voltage(DC):

    0.6 V

  • Coil Resistance:

    68 Ω

  • Coil Voltage(DC)-Max:

    6 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    5A@250VAC

  • Contact Current(AC)-Max:

    5 A

  • Contact Current(DC)-Max:

    5 A

  • Contact (DC) Max Rating R Load:

    5A@30VDC

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    28.6mm x 12.8mm x 20.4mm

  • Reference Standard:

    CSA; FIMKO; SEMKO; SEV; TUV; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    5 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
