JW2SN-DC9V - Panasonic

Description: 1 Form A/1 Form C/2 Form A/2 Form C, 5 A/10 A, Power relays

Download JW2SN-DC9V Model

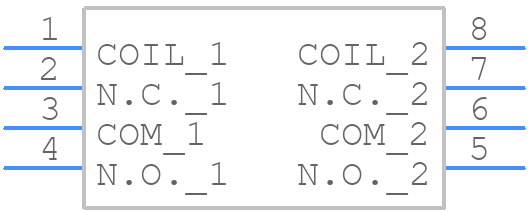

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

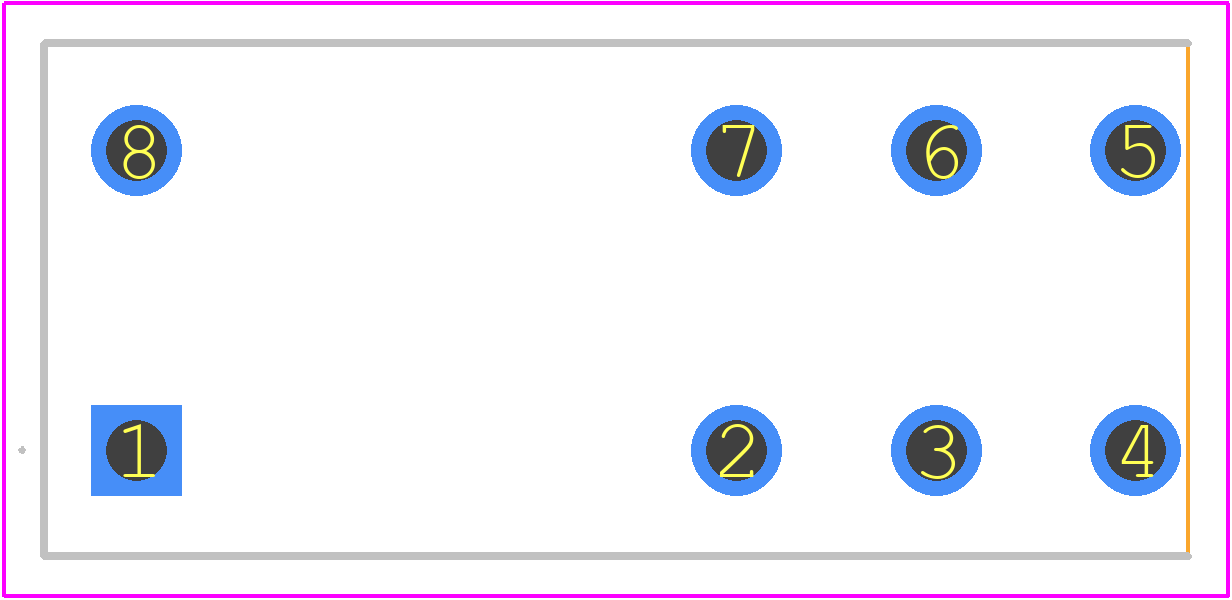

JW2SN-DC9V - Panasonic PCB footprint - Other - Other - JW2x
click to zoom
3D Models
JW2SN-DC9V - Panasonic  - 3D model - Other - JW2x
click to zoom

JW2SN-DC9V Details

  • Manufacturer Part Number:

    JW2SN-DC9V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.78

  • Body Breadth:

    12.8 mm

  • Body Height:

    20 mm

  • Body Length or Diameter:

    28.6 mm

  • Coil Current(DC)-Max:

    0.058 A

  • Coil Operate Voltage(DC):

    6.3 V

  • Coil Power:

    530 mW

  • Coil Release Voltage(DC):

    0.9 V

  • Coil Resistance:

    155 Ω

  • Coil Voltage(DC)-Max:

    9 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    5A@250VAC

  • Contact Current(AC)-Max:

    5 A

  • Contact Current(DC)-Max:

    5 A

  • Contact (DC) Max Rating R Load:

    5A@30VDC

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    28.6mm x 12.8mm x 20mm

  • Reference Standard:

    CSA; FIMKO; SEMKO; SEV; TUV; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    5 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

JW2SN-DC9V Frequently Asked Questions (FAQs)

  • A good PCB layout for JW2SN-DC9V involves keeping the input and output traces separate, using a ground plane, and placing the component near the power source to reduce noise.
  • To ensure reliability in high-temperature applications, ensure proper heat sinking, use a thermal interface material, and follow the recommended derating guidelines for the component.
  • The maximum allowable voltage deviation for JW2SN-DC9V is ±10% of the rated input voltage, but it's recommended to consult the datasheet for specific voltage tolerance guidelines.
  • Yes, JW2SN-DC9V can be used in parallel to increase the output current, but it's essential to ensure that the components are properly synchronized and that the output currents are balanced to prevent uneven current sharing.
  • The recommended input capacitor value for JW2SN-DC9V is 10uF to 22uF, but the optimal value may vary depending on the specific application and input voltage ripple requirements.
