JWD-172-5 - TE Connectivity

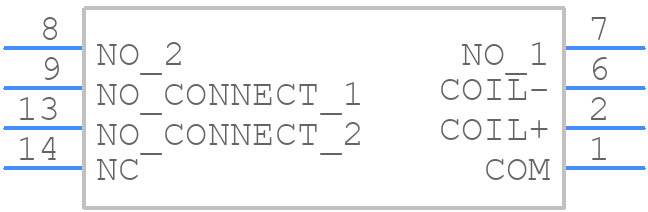

JWD-172-5 Details

• Manufacturer Part Number:

  JWD-172-5

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Country Of Origin:

  Indonesia

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Additional Feature:

  WITH SUPPRESSION DIODE

• Body Breadth:

  7.62 mm

• Body Height:

  8 mm

• Body Length or Diameter:

  20.3 mm

• Coil Current(DC)-Max:

  0.03 A

• Coil Operate Voltage(DC):

  3.8 V

• Coil Power:

  878 mW

• Coil Release Voltage(DC):

  0.5 V

• Coil Resistance:

  200 Ω

• Coil Voltage(AC)-Max:

  12 V

• Coil Voltage(DC)-Max:

  6 V

• Coil Voltage-Nom:

  6 V

• Coil/Input Supply Type:

  DC

• Contact Current(AC)-Max:

  0.5 A

• Contact Current(DC)-Max:

  0.5 A

• Contact (DC) Max Power Rating R Load:

  3W@10VDC

• Contact (DC) Max Rating R Load:

  .5A@28VDC

• Contact Resistance:

  200 mΩ

• Contact Voltage(DC)-Max:

  10 V

• Contact/Output Supply Type:

  DC

• Dielectric Strength Between Coil and Contacts:

  500 Vrms

• Dielectric Strength Between Open Contacts:

  175 Vrms

• Electrical Life:

  1000000 Cycle(s)

• End Contact Material:

  RUTHENIUM

• Input Switching Control Type:

  Random

• Insulation Resistance:

  100000000 Ω

• Mounting Feature:

  PANEL MOUNT

• Number of Terminals:

  8

• Operate Time:

  1.5 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -35 °C

• Packing Method:

  BOX; TRAY

• Physical Dimension:

  19.56mm x 7.62mm x 8mm

• Reference Standard:

  CSA; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM A

• Relay Function:

  SPDT

• Relay Type:

  DRY REED RELAY

• Release Time:

  3 ms

• Sealing:

  EPOXY TERMINAL SEALED

• Surface Mount:

  NO

• Terminal Length:

  0.0032994665989331978 inch

• Termination Type:

  SOLDER/QUICK CONNECT

• Weight:

  2.3 g
