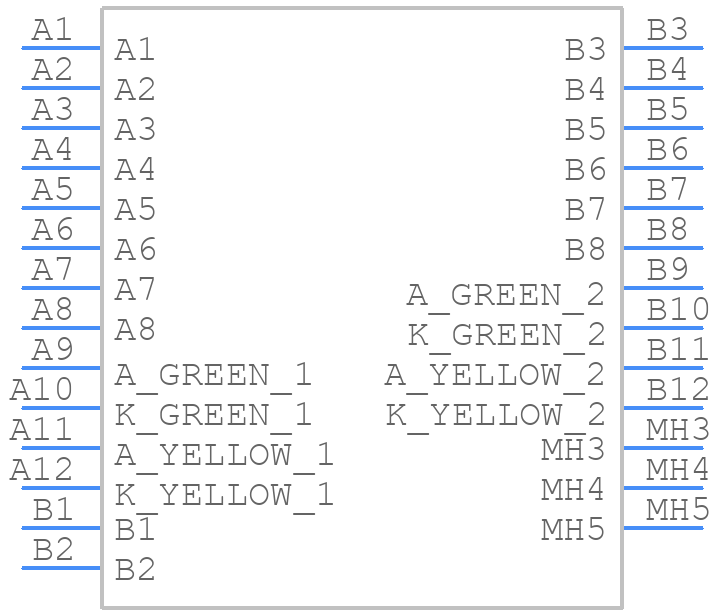

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for JXR8-1003NL
- Part Number JXR8-1003NL
- Manufacturer Yageo Group
- Pin Count 27
- Part Category Connector
- Package Category Other

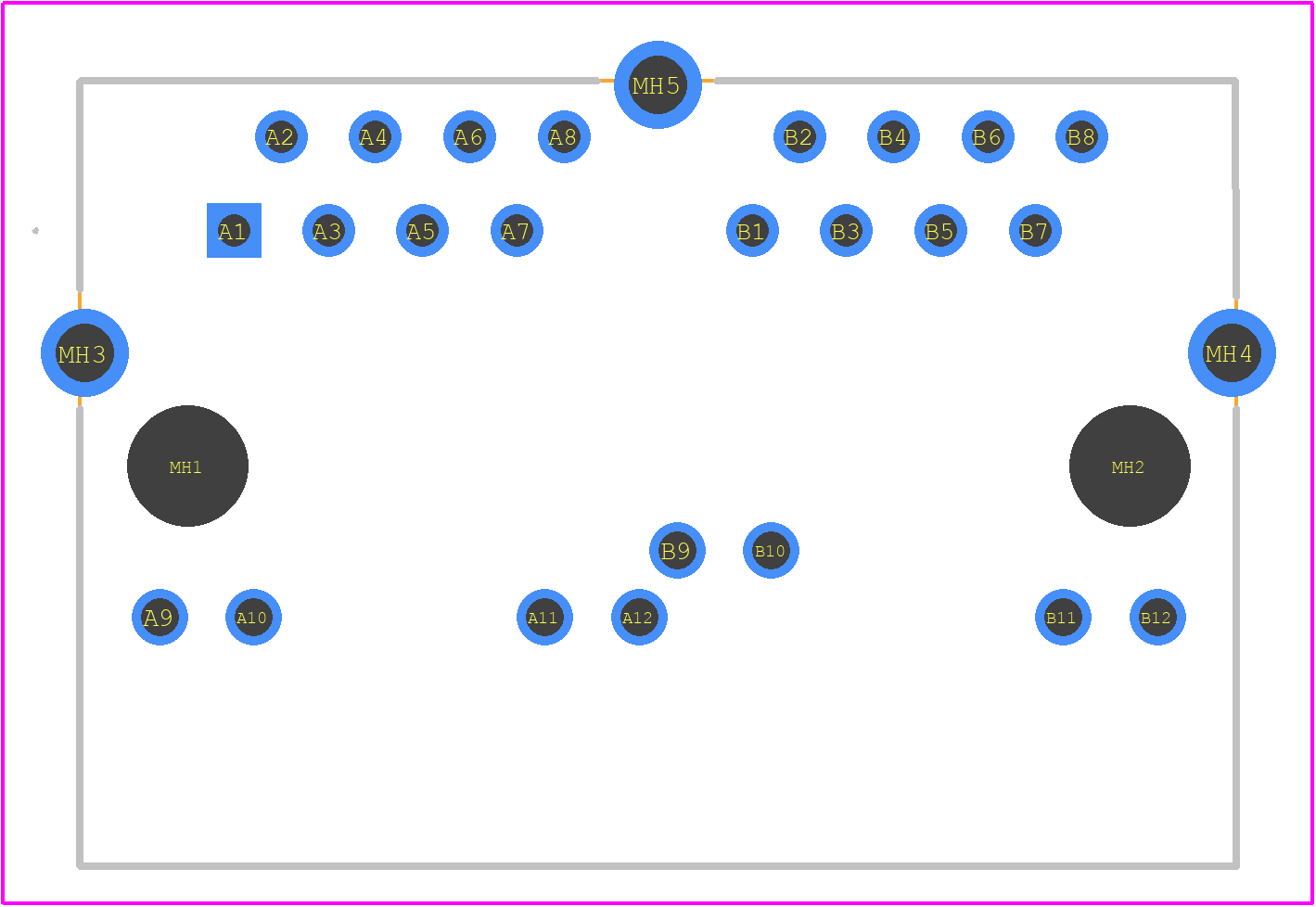

- Footprint Name Other - JXR8-1003NL-2
- Released Date Dec 4, 2021
- Last Modified Date Feb 4, 2026 2:20 PM UTC
- Pinout / Pin List Click Here (Member Only)
JXR8-1003NL Details
-
Manufacturer Part Number:
JXR8-1003NL
-
Manufacturer:
YAGEO Corporation
Trust Checks
Community Provided
System Verified
Community Approved
JXR8-1003NL Overview
Use the download button to access the JXR8-1003NL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like JXR8-,
or try a keyword search, such as Telecom and Datacom Connectors
