JYDC-23-1HP+ - Mini-Circuits

Description: Signal Conditioning HI PWR DIR COUP / SM RoHS

Download JYDC-23-1HP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

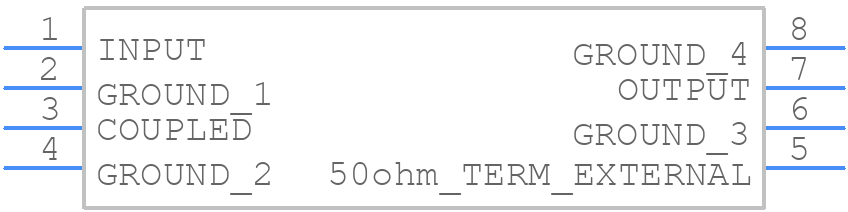

JYDC-23-1HP+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
JYDC-23-1HP+ - Mini-Circuits PCB footprint - Other - Other - BJ937
click to zoom
3D Models
JYDC-23-1HP+ - Mini-Circuits - 3D model - Other - BJ937
click to zoom

JYDC-23-1HP+ Details

  • Manufacturer Part Number:

    JYDC-23-1HP+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE BJ937, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.84

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    40 dBm

  • Insertion Loss-Max:

    0.4 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    500 MHz

  • Operating Frequency-Min:

    30 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.1

JYDC-23-1HP+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator on their website, which can help you determine the required components and their values.
  • The JYDC-23-1HP+ is rated for operation from -40°C to +85°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and it's recommended to derate the power handling accordingly.
  • Yes, the JYDC-23-1HP+ can be used in switching applications, but it's essential to ensure that the device is properly biased and that the switching frequency is within the recommended range. Additionally, the device's power handling and thermal performance should be carefully considered.
  • The typical lead time for the JYDC-23-1HP+ varies depending on the quantity and availability. It's recommended to check with Mini-Circuits or their authorized distributors for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JYDC-23-1HP+ Overview

Use the download button to access the JYDC-23-1HP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JYDC-, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
