K32W041AK - NXP

Description: ; Type. TxRx + MCU ; RF Family/Standard. 802.15.4, Bluetooth ; Protocol. Bluetooth v5.0, Thread, Zigbee® ; Modulation. - ; Frequency. 2.4GHz.

Download K32W041AK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

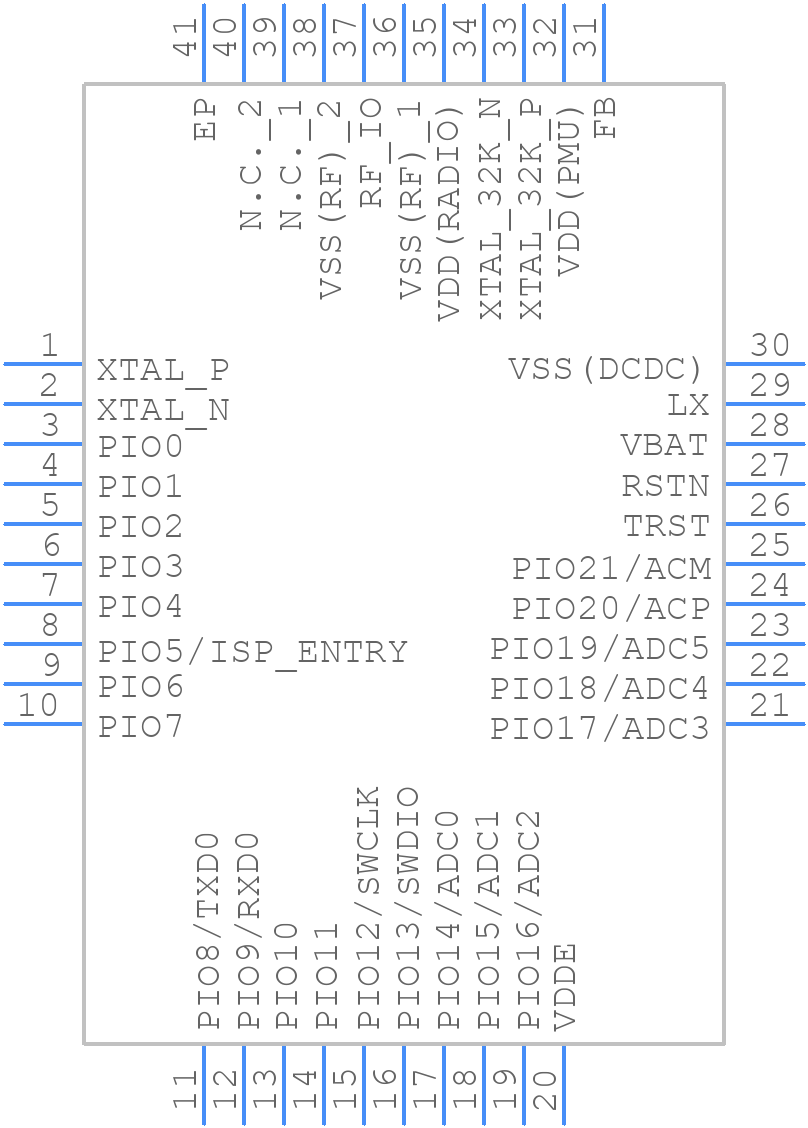

K32W041AK - NXP - PCB symbol
click to zoom
PCB Footprints
K32W041AK - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT618-1_2021
click to zoom
3D Models
K32W041AK - NXP - 3D model - Quad Flat No-Lead - SOT618-1_2021
click to zoom

K32W041AK Details

  • Manufacturer Part Number:

    K32W041AK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQFN-40

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • JESD-30 Code:

    S-PQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    Bluetooth SoC

K32W041AK Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the K32W041AK is 32.768 kHz, which is a standard frequency for many wireless applications.
  • To configure the K32W041AK for low power consumption, you can use the device's power modes, such as the Low Power Mode (LPM) or the Deep Sleep Mode (DSM). You can also adjust the clock frequency, disable unnecessary peripherals, and use the device's power gating feature to reduce power consumption.
  • Yes, the K32W041AK can be used with an external antenna. The device has a built-in antenna switch that allows you to connect an external antenna to the device. You will need to ensure that the external antenna is designed for the frequency band of operation and meets the necessary regulatory requirements.
  • To implement secure boot on the K32W041AK, you can use the device's built-in Secure Boot feature, which ensures that the device only boots from a trusted source. You will need to generate a secure boot key, store it in the device's One-Time Programmable (OTP) memory, and configure the device to use the secure boot feature.
  • The maximum operating temperature range for the K32W041AK is -40°C to 85°C. However, the device can operate at temperatures above 85°C for short periods of time, but this may affect its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

K32W041AK Overview

Use the download button to access the K32W041AK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like K32W0, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
