K32W041AMZ - NXP

Description: RF Microcontrollers - MCU High Performance and Ultra-Low-Power MCU for Zigbee ,Thread, and Bluetooth LE 5.0 with Built-in NFC option

Download K32W041AMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

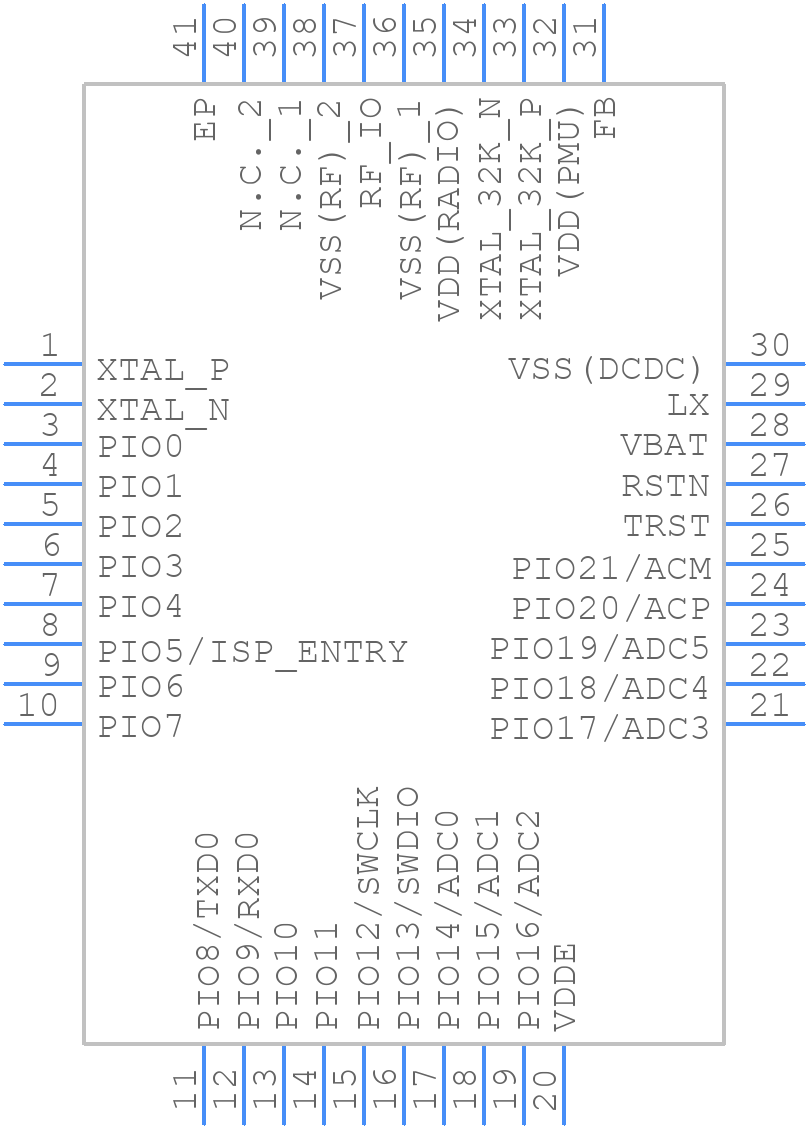

K32W041AMZ - NXP - PCB symbol
click to zoom
PCB Footprints
K32W041AMZ - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN-40
click to zoom
3D Models
K32W041AMZ - NXP - 3D model - Quad Flat No-Lead - HVQFN-40
click to zoom

K32W041AMZ Details

  • Manufacturer Part Number:

    K32W041AMZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQFN-40

  • ECCN Code:

    5A992

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • JESD-30 Code:

    S-PQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    Bluetooth SoC

K32W041AMZ Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the K32W041AMZ is -40°C to 85°C.
  • The clock source for the K32W041AMZ can be configured using the Clock Controller (CLKC) module. The CLKC module allows you to select the clock source, configure the clock frequency, and enable or disable the clock output.
  • The maximum current consumption of the K32W041AMZ is approximately 100 mA, depending on the operating frequency and peripheral usage.
  • The K32W041AMZ has several low-power modes, including Sleep, Deep Sleep, and Power Down. These modes can be enabled using the Power Management Controller (PMC) module. The PMC module allows you to configure the power mode, set the wake-up sources, and control the power gating of peripherals.
  • The maximum frequency of the K32W041AMZ is 48 MHz.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

K32W041AMZ Overview

Use the download button to access the K32W041AMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like K32W0, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
