K81C335 - TE Connectivity

Description: Configuration Features: Power Switching Yes | Contact Features: Contact Arrangement 1 Form C, SPDT | Contact Current Rating (Max) 5 AMP | Electrical Characteristics: Coil Voltage (Max) 26.5 VDC | Contact Voltage Rating 10 VDC | Mechanical Attachment: Product Mount Type Printed Circuit Board | Product Type Features: RF Rated Yes | Relay Connection Type PCB Solder Pins | Termination Features: High Voltage Connection (Power) High Voltage Tabs | High Voltage Connection (Coil) PCB Tails |

Download K81C335 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

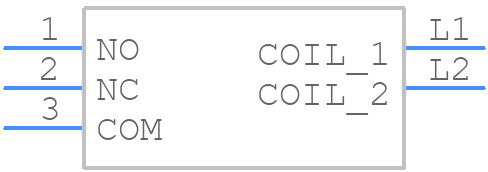

K81C335 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

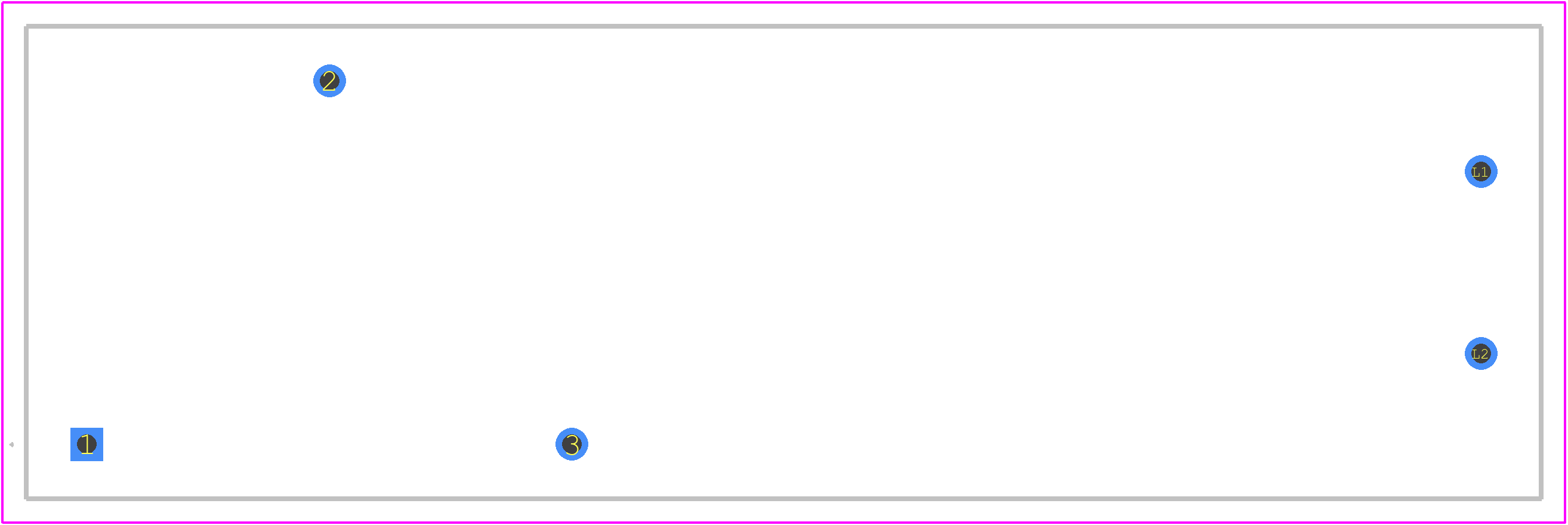

K81C335 - TE Connectivity PCB footprint - Other - Other - K81C335-2
click to zoom
3D Models
K81C335 - TE Connectivity - 3D model - Other - K81C335-2
click to zoom

K81C335 Details

  • Manufacturer Part Number:

    K81C335

  • Brand Name:

    CII

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    65 Weeks

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    SWITCH FUNCTION SPDT ALSO AVAILABLE

  • Coil Current(DC)-Max:

    0.091 A

  • Coil Operate Voltage(DC):

    16 V

  • Coil Power:

    2411.5 mW

  • Coil Release Voltage(DC):

    10 V

  • Coil Resistance:

    290 Ω

  • Coil Voltage(DC)-Max:

    26.5 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    5 A

  • Contact Current(DC)-Max:

    5 A

  • Contact (DC) Max Rating R Load:

    10A@10000VDC

  • Contact Voltage(DC)-Max:

    10 V

  • Contact/Output Supply Type:

    AC/DC

  • Mounting Feature:

    PANEL MOUNT

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SNAP ON

K81C335 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of K81C335 is 0.5 Nm to 1.5 Nm. Over-tightening can damage the terminals.
  • Yes, K81C335 is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and screw torque procedures to ensure reliable connections.
  • K81C335 is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95%. However, it's recommended to follow proper sealing and protection procedures to ensure reliability in harsh environments.
  • While K81C335 is designed for AWG 20-24 wires, it can accommodate other wire sizes with proper wire preparation and termination techniques. However, it's recommended to consult with TE Connectivity or a qualified engineer for specific guidance.
  • Yes, K81C335 is designed to meet various safety standards, including UL and IEC. However, it's essential to follow proper safety procedures when handling and installing the connector, such as avoiding over-voltage and ensuring proper insulation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

K81C335 Overview

Use the download button to access the K81C335 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like K81C3, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
