The recommended torque for the screw locks is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
Yes, the KA1-MV10205M2 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
The maximum operating temperature range for the KA1-MV10205M2 connector is -40°C to +125°C, as specified in the datasheet.
Yes, the KA1-MV10205M2 connector is compatible with lead-free soldering processes, with a recommended soldering temperature of 260°C maximum.
The mating cycle life of the KA1-MV10205M2 connector is 500 cycles minimum, as specified in the Harwin datasheet.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KA1-MV10205M2 Overview

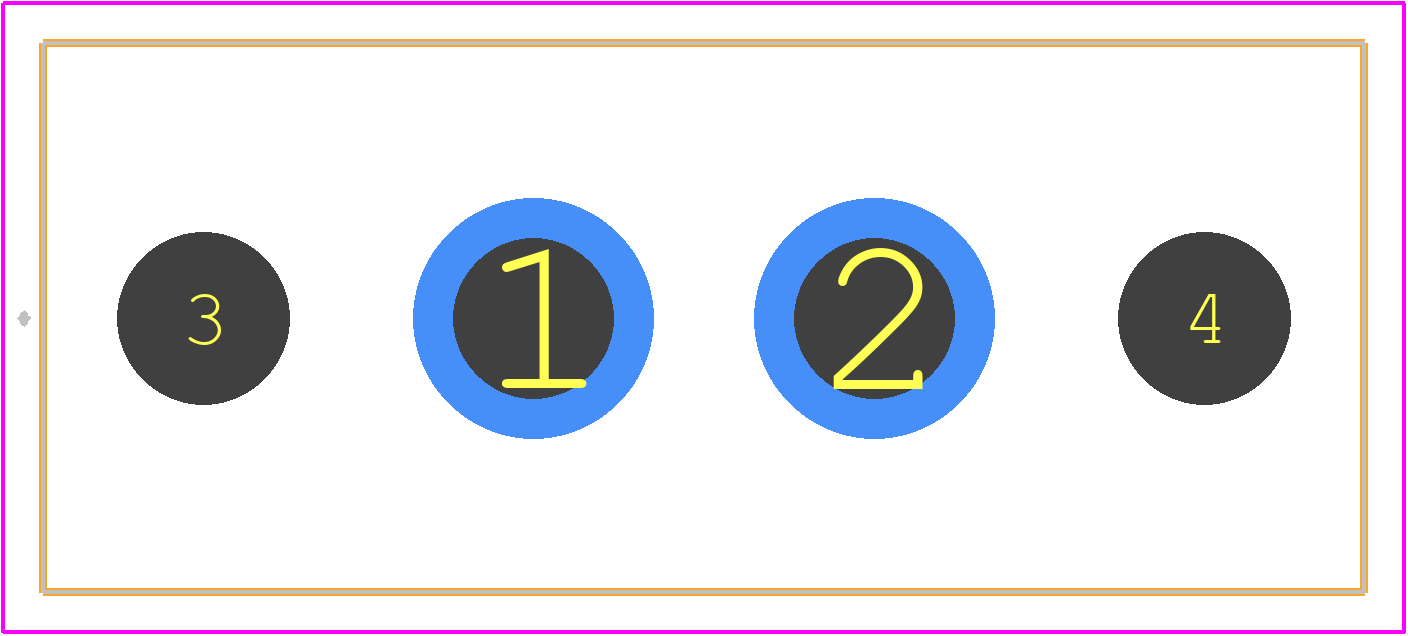

Use the download button to access the KA1-MV10205M2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KA1-M,
or try a keyword search, such as Headers and Edge Type Connectors
