The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
Yes, the KA1-MV10305M1 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
Yes, the KA1-MV10305M1 connector is designed to operate in harsh environments, with a temperature range of -40°C to +125°C and humidity resistance of 95% RH at 40°C.
The mating cycle life of the KA1-MV10305M1 connector is 500 cycles, with a minimum of 100 cycles recommended for reliable operation.
While the KA1-MV10305M1 connector is designed for use with AWG 24-30 wires, it can be used with other wire sizes, but the wire stripping length and insulation diameter may need to be adjusted accordingly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KA1-MV10305M1 Overview

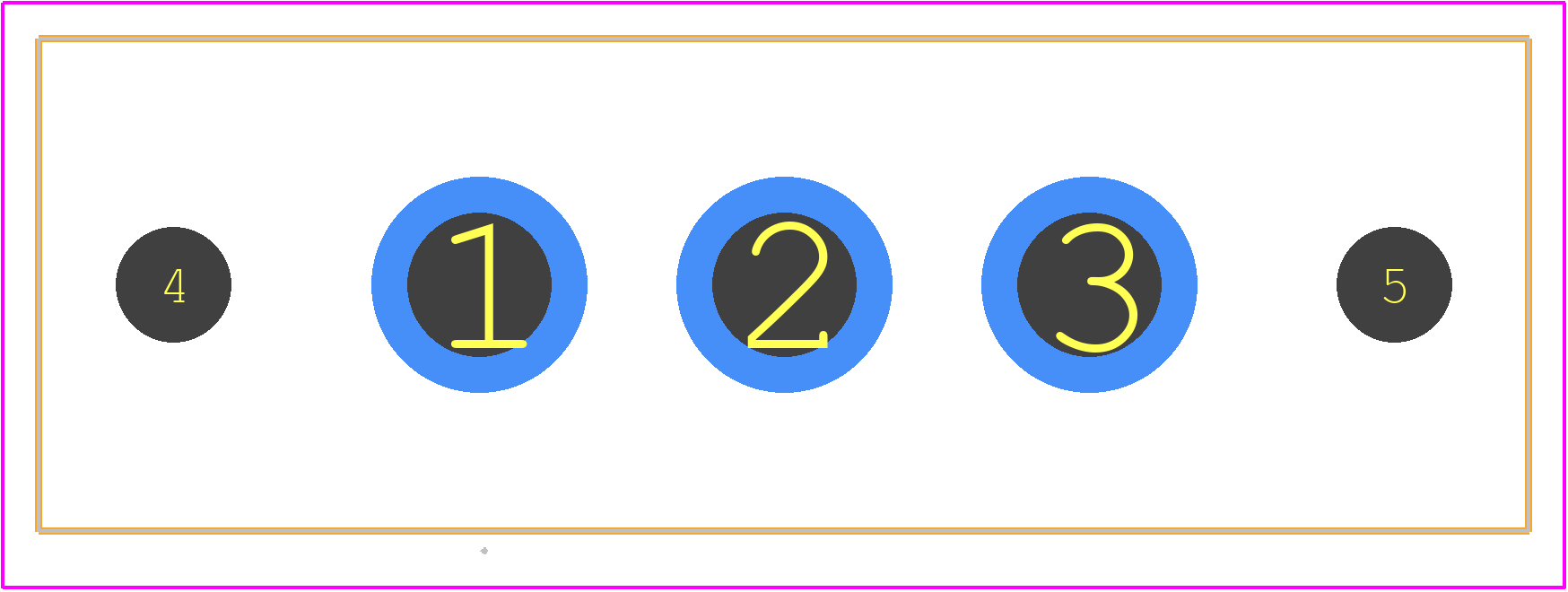

Use the download button to access the KA1-MV10305M1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KA1-M,
or try a keyword search, such as Headers and Edge Type Connectors
