KA1-MV10405M1 - Harwin

Description: Kona: 4 Pos Plug SIL Straight 4.5mm THT Connector 5.2mm Board Mount

Download KA1-MV10405M1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KA1-MV10405M1 - Harwin - PCB symbol
click to zoom
PCB Footprints

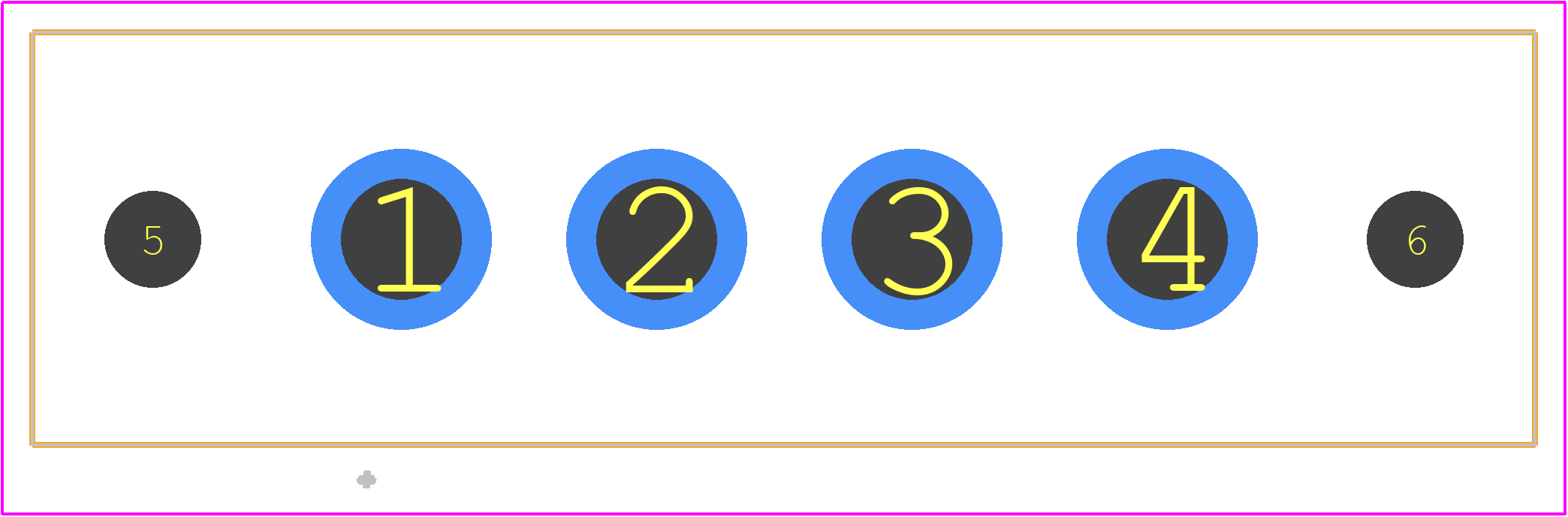

KA1-MV10405M1 - Harwin PCB footprint - Other - Other - KA1-MV10405M1
click to zoom
3D Models
KA1-MV10405M1 - Harwin - 3D model - Other - KA1-MV10405M1
click to zoom

KA1-MV10405M1 Details

  • Manufacturer Part Number:

    KA1-MV10405M1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • Additional Feature:

    RATED CURRENT(POWER):60A

  • Body Breadth:

    0.413 inch

  • Body Depth:

    0.374 inch

  • Body Length:

    1.969 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    RND PIN-SKT

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • Insulator Material:

    POLYPHENYLENE SULFIDE

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

KA1-MV10405M1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
  • Yes, the KA1-MV10405M1 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • Yes, the KA1-MV10405M1 connector is designed to operate in harsh environments, with a temperature range of -40°C to +125°C and humidity resistance of 95% RH at 40°C.
  • The mating cycle life of the KA1-MV10405M1 connector is 500 cycles minimum, with a maximum of 1000 cycles depending on the application and environmental conditions.
  • Yes, the KA1-MV10405M1 connector is designed for automated assembly, with a pick-and-place compatible design and a tape-and-reel packaging option available.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KA1-MV10405M1 Overview

Use the download button to access the KA1-MV10405M1 schematic symbol, PCB footprint, and 3D model.
