The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help reduce input voltage ripple and improve output stability.
To ensure the KA3845B operates within its SOA, monitor the input voltage, output current, and junction temperature. Ensure the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating of 150°C.
The EN pin is used to enable or disable the regulator. When the EN pin is high, the regulator is enabled, and when it's low, the regulator is disabled. This pin can be used to implement power sequencing or to turn off the regulator when not in use.
The KA3845B is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases. Consult the datasheet for thermal derating curves and ensure proper heat sinking to maintain reliable operation.
To minimize noise and ensure stability, follow good PCB layout practices: keep the input and output capacitors close to the regulator, use a solid ground plane, and minimize trace lengths and loops. Also, ensure the input and output voltage rails are properly decoupled.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KA3845B Overview

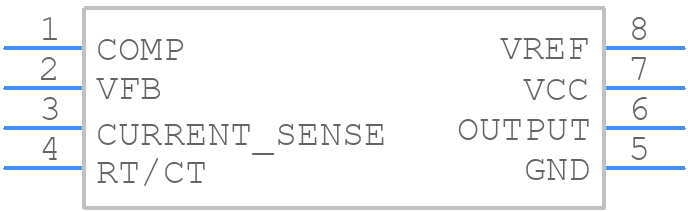

Use the download button to access the KA3845B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KA384,
or try a keyword search, such as Switching Regulator or Controllers
