KA4823-CL - COILCRAFT

Description: Audio Transformers / Signal Transformers KA4823 Flyback 220 Vac 10.5A

Download KA4823-CL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

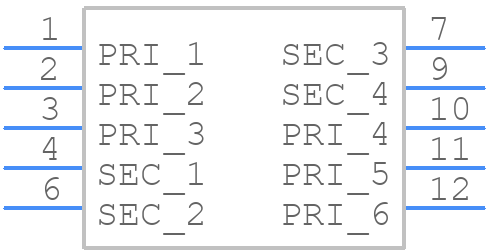

Symbol
KA4823-CL - COILCRAFT - PCB symbol
click to zoom

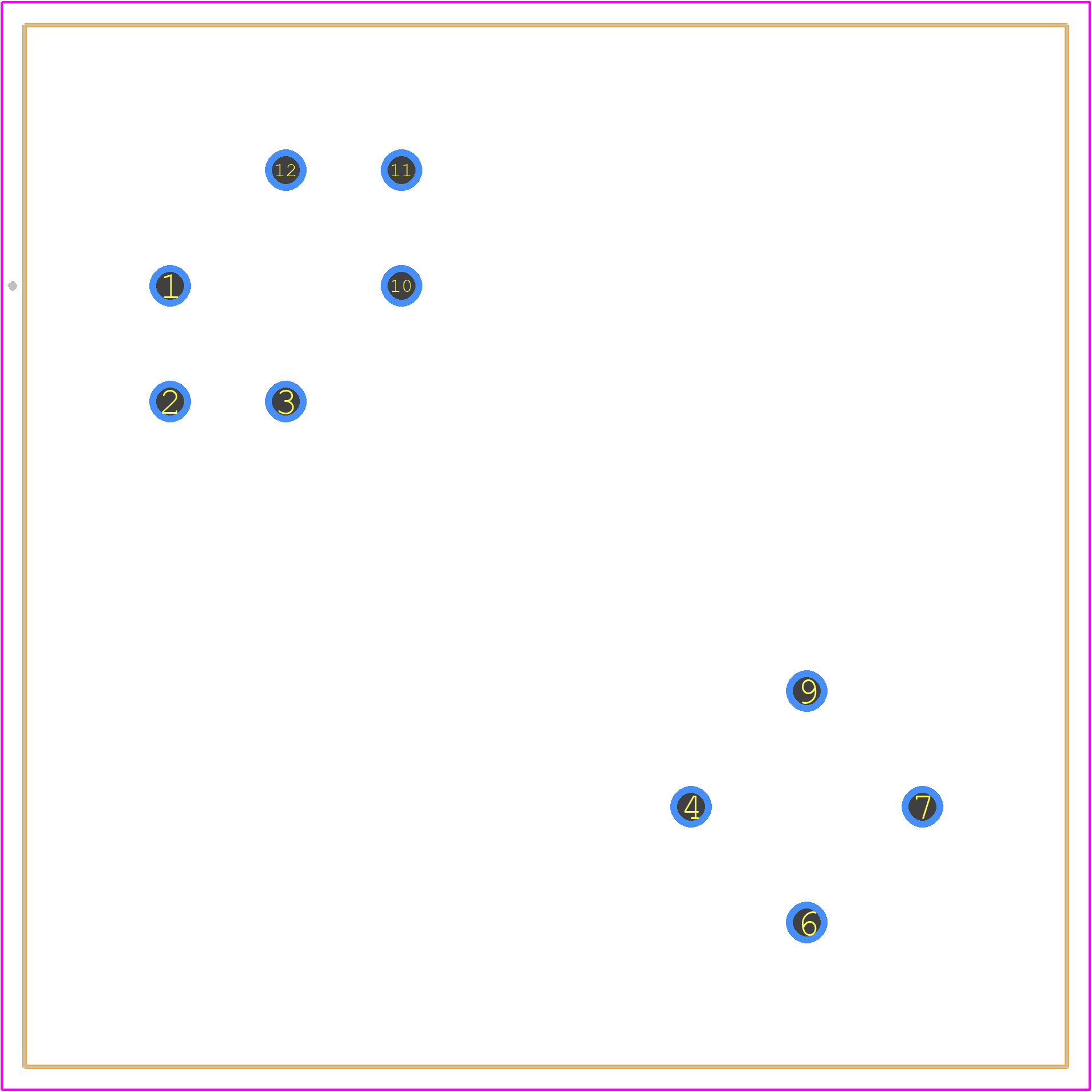

PCB Footprints
KA4823-CL - COILCRAFT PCB footprint - Other - Other - KA4823-CL-2
click to zoom
3D Models
KA4823-CL - COILCRAFT - 3D model - Other - KA4823-CL-2
click to zoom

KA4823-CL Details

  • Manufacturer Part Number:

    KA4823-CL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • Height:

    30.48 mm

  • Input Voltage-Max:

    55 V

  • Input Voltage-Min:

    22 V

  • Length:

    45.72 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    220 V

  • Packing Method:

    TRAY

  • Primary Inductance:

    28 µH

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver (Sn/Ag) - Tin (Sn)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    45.72 mm

KA4823-CL Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended PCB land pattern in their datasheet, which includes a layout diagram and dimensions for optimal performance and assembly.
  • The KA4823-CL is rated for operation up to 125°C, but derating may be necessary for temperatures above 85°C. Consult Coilcraft's temperature derating chart for specific guidance.
  • To minimize the risk of mechanical stress affecting the inductor's performance, follow proper handling and assembly procedures, such as avoiding bending or flexing the component, and using a secure and even soldering process.
  • The SRF of the KA4823-CL is not explicitly stated in the datasheet, but it can be estimated using Coilcraft's online inductor simulation tool or by consulting with their application engineers.
  • The KA4823-CL is designed for use in high-frequency applications, but its performance may degrade above 100 MHz. Consult Coilcraft's high-frequency inductor selection guide for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KA4823-CL Overview

Use the download button to access the KA4823-CL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KA482, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
