KA5038-BL - COILCRAFT

KA5038-BL Frequently Asked Questions (FAQs)

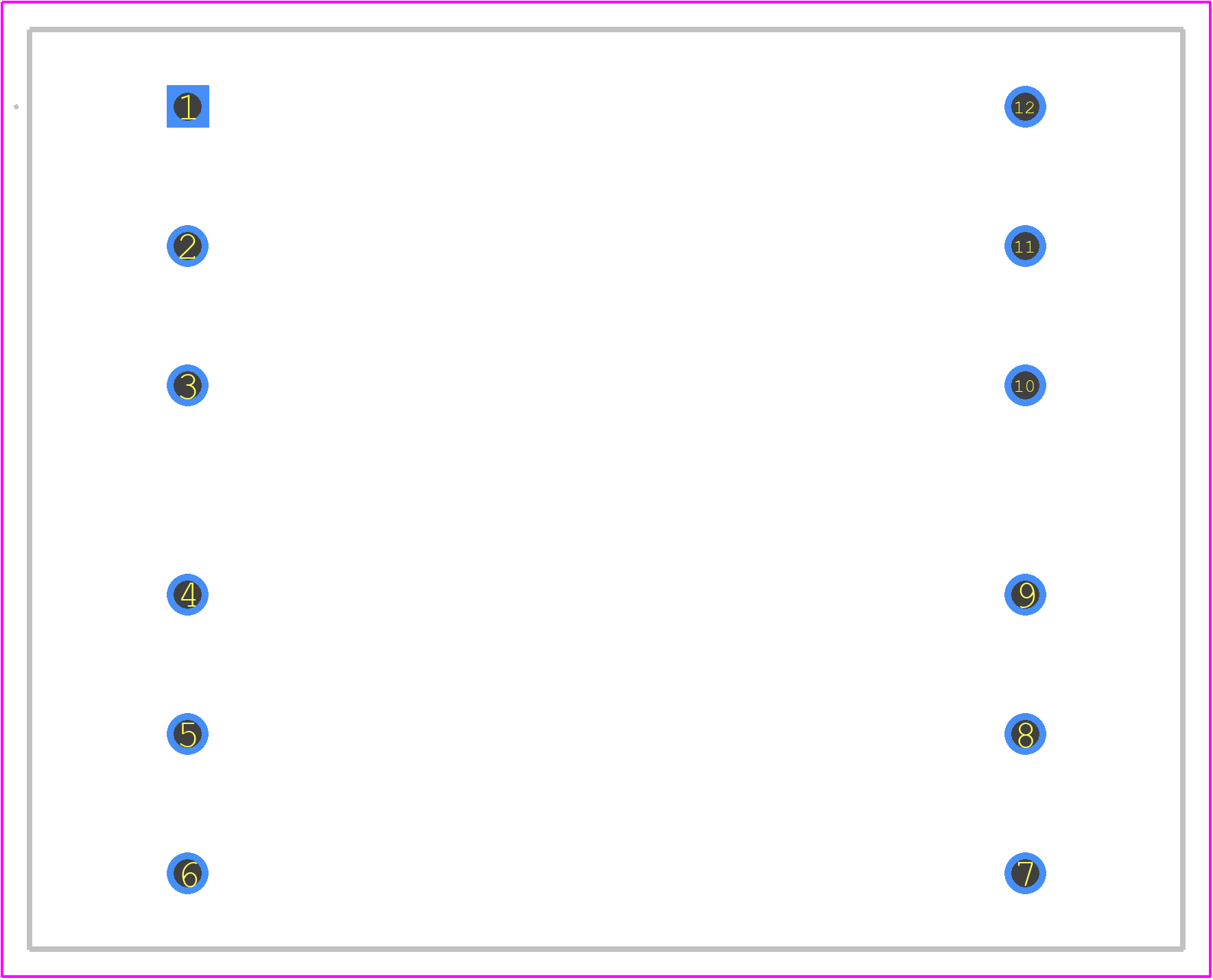

• What is the recommended land pattern for the KA5038-BL?
  Coilcraft provides a recommended land pattern for the KA5038-BL in their datasheet, which includes a suggested PCB footprint and pad layout to ensure proper mounting and soldering.
• Can I use the KA5038-BL in a high-temperature environment?
  The KA5038-BL is rated for operation up to 125°C, but derating may be necessary for temperatures above 85°C. Consult Coilcraft's temperature derating chart for specific guidance.
• How do I handle the KA5038-BL's magnetic shielding?
  The KA5038-BL has a shielded construction, which helps reduce electromagnetic interference (EMI). However, it's still important to follow proper PCB layout and design practices to minimize EMI and ensure optimal performance.
• What is the KA5038-BL's saturation current?
  The saturation current of the KA5038-BL is not explicitly stated in the datasheet. However, Coilcraft provides a DC current rating, which is typically lower than the saturation current. For specific saturation current information, contact Coilcraft's application support team.
• Can I use the KA5038-BL in a high-frequency application?
  The KA5038-BL is designed for use in high-frequency applications, with a recommended operating frequency range of up to 1 GHz. However, it's essential to consider the inductor's self-resonant frequency (SRF) and ensure it doesn't interfere with your application's operating frequency.
