KA5M0165RN - onsemi

Description: Power Switch ICs - Power Distribution 1A/650V 70KHz Power Switch

Download KA5M0165RN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

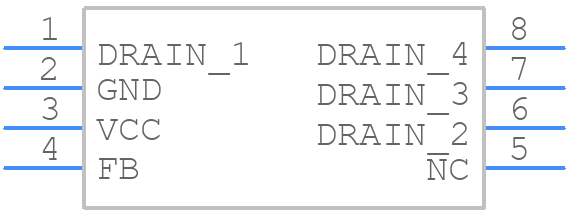

Symbol
KA5M0165RN - onsemi - PCB symbol
click to zoom
PCB Footprints
KA5M0165RN - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8DIP_1
click to zoom
3D Models
KA5M0165RN - onsemi - 3D model - Dual-In-Line Packages - 8DIP_1
click to zoom

KA5M0165RN Details

  • Manufacturer Part Number:

    KA5M0165RN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    9.4 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.67 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    12 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

KA5M0165RN Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the KA5M0165RN is 4.5V to 5.5V, with a typical voltage of 5V.
  • The KA5M0165RN has a specific power-up and power-down sequence requirement to prevent latch-up and ensure proper operation. It is recommended to follow the sequence outlined in the datasheet, which typically involves powering up the VCC pin before the VBB pin, and powering down the VBB pin before the VCC pin.
  • The maximum allowable power dissipation for the KA5M0165RN is 1.5W, with a thermal resistance (RθJA) of 50°C/W. It is essential to ensure proper heat sinking and thermal management to prevent overheating and damage to the device.
  • To ensure EMC with the KA5M0165RN, it is recommended to follow proper PCB design and layout guidelines, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as necessary. Additionally, ensure that the device is properly decoupled and bypassed to minimize electromagnetic interference (EMI).
  • The recommended storage temperature range for the KA5M0165RN is -40°C to 125°C. It is essential to store the device within this range to prevent damage and ensure reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KA5M0165RN Overview

Use the download button to access the KA5M0165RN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KA5M0, or try a keyword search, such as Switching Regulator or Controllers
