A good PCB layout for the KA7500B involves placing the input and output capacitors close to the IC, using a solid ground plane, and keeping the input and output traces short and away from each other. Additionally, using a shielded inductor and placing it away from the IC can help reduce EMI.
To ensure the KA7500B operates within its SOA, monitor the input voltage, output current, and ambient temperature. Ensure the input voltage is within the recommended range, and the output current is within the maximum rating. Also, provide adequate heat sinking and airflow to keep the junction temperature below 150°C.
A low-ESR ceramic capacitor with a value of 1-10uF is recommended for the input of the KA7500B. The capacitor should be placed close to the IC and have a voltage rating of at least 1.5 times the maximum input voltage.
To troubleshoot the KA7500B, check the input voltage, output voltage, and output current. Verify that the input voltage is within the recommended range, and the output voltage is within the specified tolerance. Check for any signs of overheating, and ensure the output capacitor is properly connected and of the correct value.
Yes, the KA7500B is suitable for high-reliability applications. It's built with high-reliability materials and manufacturing processes, and is qualified to various industry standards such as AEC-Q100 and MIL-STD-883. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KA7500B Overview

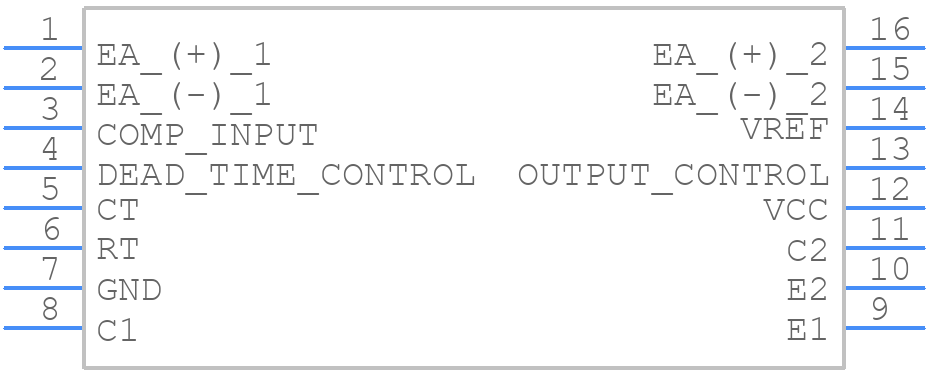

Use the download button to access the KA7500B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KA750,
or try a keyword search, such as Switching Regulator or Controllers
