KA78L05ADTF - onsemi

Description: IC, Fairchild, KA78L05ADTF Fairchild Semiconductor KA78L05ADTF, Single Linear Voltage Regulator, 100mA 5 V, 8-Pin SOIC

Download KA78L05ADTF Model

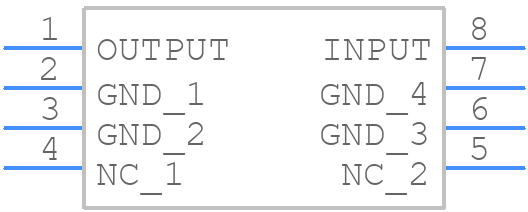

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
KA78L05ADTF - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD, SOIC, JDEC MS-012, 0.150" NARROW BODY1
click to zoom
3D Models
KA78L05ADTF - onsemi  - 3D model - Small Outline Packages - 8-LEAD, SOIC, JDEC MS-012, 0.150" NARROW BODY1
click to zoom

KA78L05ADTF Details

  • Manufacturer Part Number:

    KA78L05ADTF

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP, SOP8,.25

  • Manufacturer Package Code:

    751EB

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    1.7 V

  • Input Voltage Absolute-Max:

    30 V

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    7 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.15%

  • Load Regulation-Max:

    0.06%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    5.25 V

  • Output Voltage1-Min:

    4.75 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    5%

  • Width:

    3.9 mm
