KAI-11002-ABA-CP-B1 - onsemi

Description: Obsolete - Interline Transfer CCD Image Sensor, 10.7 MP

Download KAI-11002-ABA-CP-B1 Model

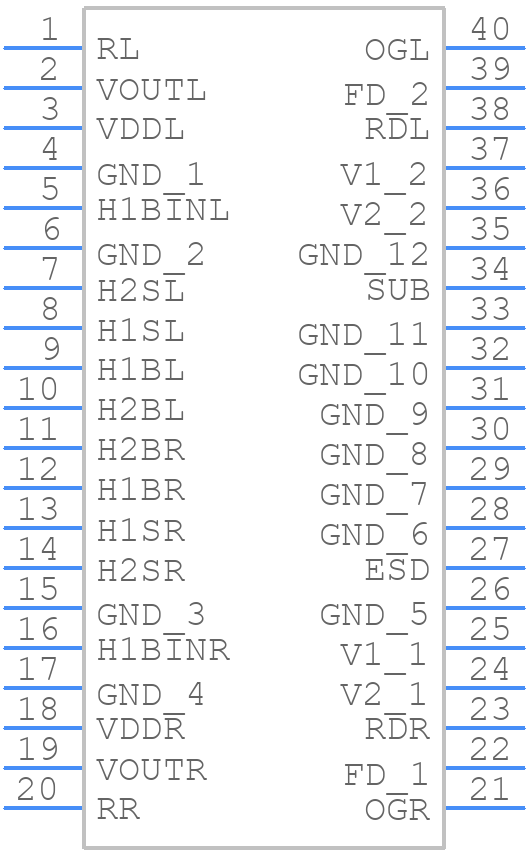

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

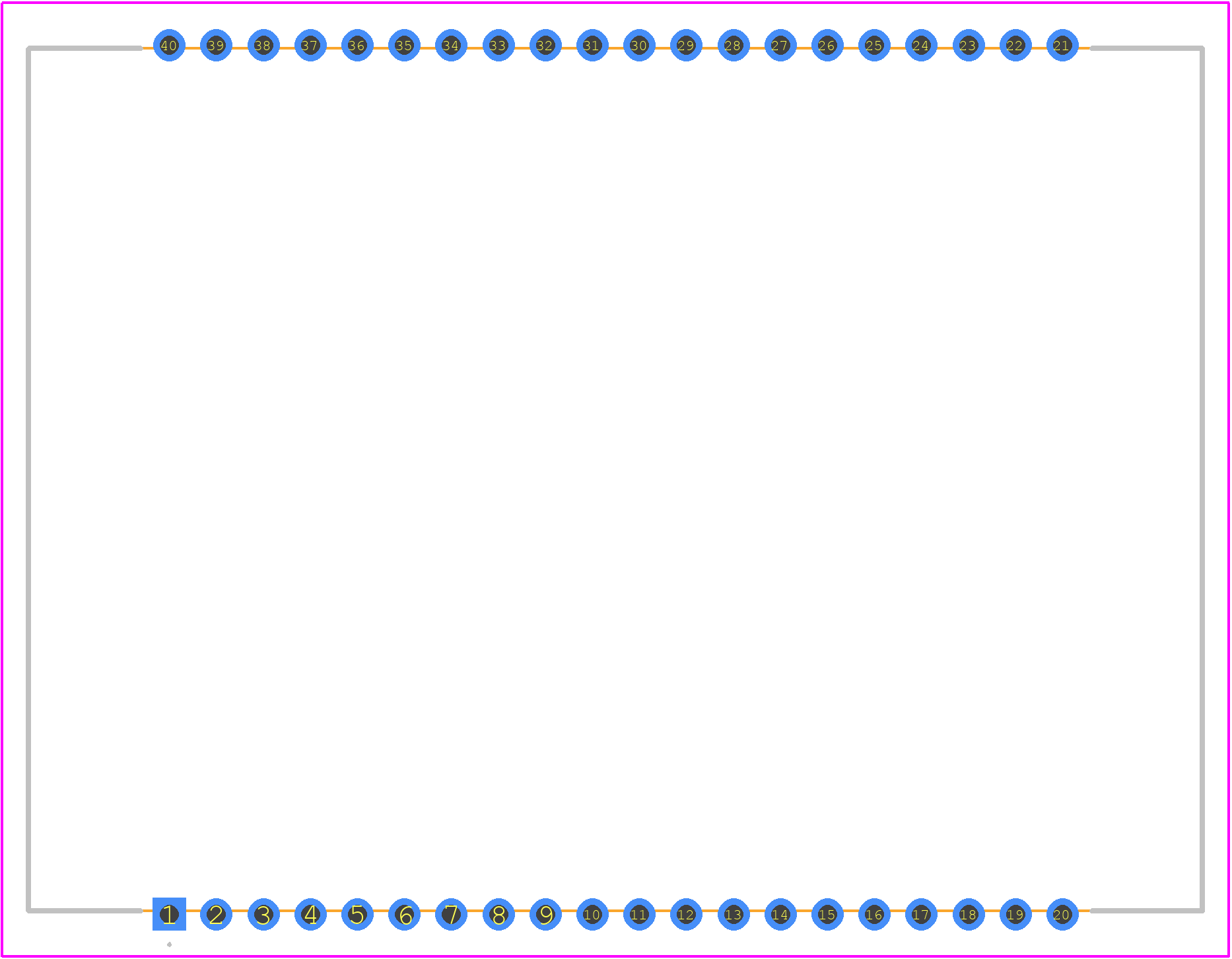

PCB Footprints
KAI-11002-ABA-CP-B1 - onsemi PCB footprint - Other - Other - KAI-11002-ABA-CP-B1-3
click to zoom
3D Models
KAI-11002-ABA-CP-B1 - onsemi  - 3D model - Other - KAI-11002-ABA-CP-B1-3
click to zoom

KAI-11002-ABA-CP-B1 Details

  • Manufacturer Part Number:

    KAI-11002-ABA-CP-B1

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CDIP-40

  • Package Description:

    DIP-40

  • Manufacturer Package Code:

    125BM

  • Date Of Intro:

    2016-02-19

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    IT HAS A SENSITIVITY OF 13 MICRO VOLT PER ELECTRON, ELECTRONIC SHUTTER, IT HAS 1.37 INCH OPTICAL FORMAT

  • Array Type:

    INTERLINE

  • Body Breadth:

    32.89 mm

  • Body Height:

    5.97 mm

  • Body Length or Diameter:

    44.45 mm

  • Data Rate:

    28 Mbps

  • Dynamic Range:

    66 dB

  • Horizontal Pixel:

    4008

  • Housing:

    CERAMIC

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -50 °C

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Pixel Size:

    9X9 µm

  • Sensors/Transducers Type:

    IMAGE SENSOR,CCD

  • Spectral Response (nm):

    300-1000

  • Supply Voltage-Max:

    15.5 V

  • Supply Voltage-Min:

    14.5 V

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

  • Vertical Pixel:

    2672

KAI-11002-ABA-CP-B1 Frequently Asked Questions (FAQs)

  • Onsemi provides a recommended PCB layout and thermal management guide in their application note AND9313/D, which includes guidelines for thermal design, PCB stack-up, and component placement to ensure optimal performance and thermal dissipation.
  • Onsemi offers a range of application notes and technical notes that provide guidance on optimizing the KAI-11002-ABA-CP-B1's performance for specific applications, such as machine vision, medical imaging, and surveillance. Engineers can also consult with onsemi's technical support team for customized advice.
  • While the datasheet specifies an operating temperature range of -20°C to 70°C, onsemi recommends that the device be operated within a temperature range of 0°C to 50°C for optimal performance and reliability. Engineers should consult with onsemi's technical support team for specific guidance on operating temperature ranges for their application.
  • Onsemi provides guidelines for EMC design and testing in their application note AND9314/D, which includes recommendations for PCB design, component selection, and shielding to minimize electromagnetic interference and ensure compliance with relevant standards.
  • Onsemi recommends a specific power-up sequence to ensure proper device operation and prevent damage. The recommended sequence is: VDD (analog power), VDDC (digital power), and finally, VREF (reference voltage). Engineers should consult the datasheet and application notes for detailed guidance.
