KAM0705 - Chinfa Electronics

Description: Converter: AC/DC; 7.5W; Uin: 90÷265V; 5VDC; Iout: 1.5A; 75%

Download KAM0705 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KAM0705 - Chinfa Electronics - PCB symbol
click to zoom
PCB Footprints

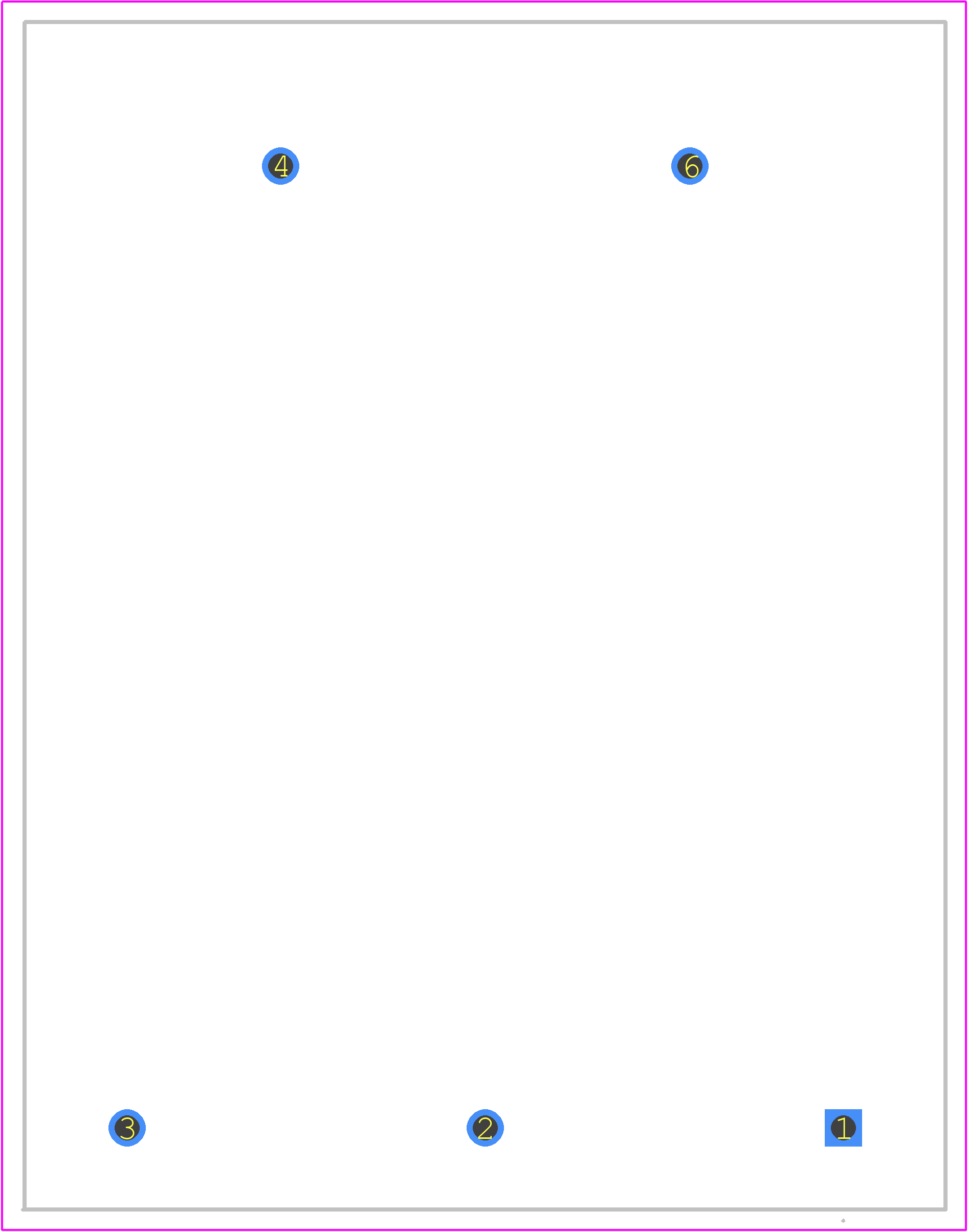

KAM0705 - Chinfa Electronics PCB footprint - Other - Other - KAM0705-1
click to zoom
3D Models
KAM0705 - Chinfa Electronics - 3D model - Other - KAM0705-1
click to zoom

KAM0705 Details

  • Manufacturer Part Number:

    KAM0705

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • Manufacturer:

    Chinfa Electronics Ind Co Ltd

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    115 V

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    MODULE,6LEAD,1.8

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    COMMERCIAL

  • Total Power Output-Max:

    7.5 W
