E-Switch provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website or by contacting their technical support team. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
The KAS2105E has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding wrist straps, and avoiding direct contact with the device's pins.
While the datasheet specifies an operating temperature range of -20°C to 70°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to consult with E-Switch's technical support team for specific guidance on operating temperature ranges for your application.
The KAS2105E is designed to meet standard vibration and shock requirements, but it's crucial to evaluate the device's performance in your specific application. E-Switch provides vibration and shock testing data upon request, and it's recommended to consult with their technical support team to determine the device's suitability for your environment.
The KAS2105E meets various regulatory requirements, such as RoHS and REACH. However, it's essential to consult with E-Switch's technical support team to ensure the device meets your specific regulatory requirements, such as UL, CE, or other certifications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KAS2105E Overview

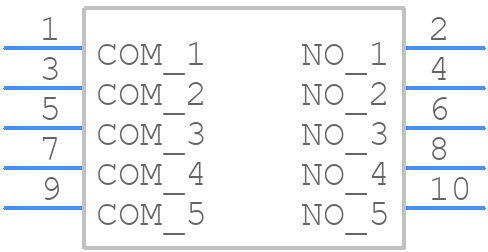

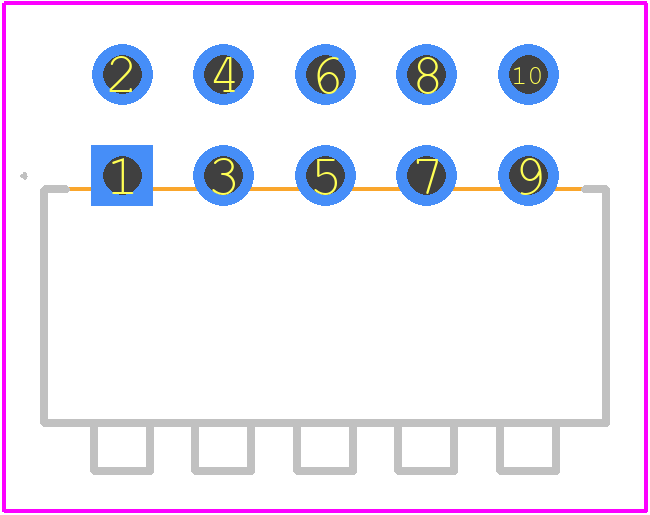

Use the download button to access the KAS2105E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KAS21,
or try a keyword search, such as DIP Switches
