The recommended PCB layout and land pattern for the KAS2108E can be found in the E-Switch Inc. application note AN-101, which provides detailed guidelines for PCB design and layout to ensure optimal performance and reliability.
To ensure proper soldering and reflow, follow the recommended soldering profile and temperature guidelines provided in the E-Switch Inc. application note AN-102. Additionally, use a solder with a melting point of 217°C to 220°C and a peak reflow temperature of 240°C to 250°C.
The KAS2108E is rated for operation from -40°C to 85°C, but it's recommended to derate the operating temperature range to -20°C to 70°C for optimal performance and reliability.
To prevent electrostatic discharge (ESD) damage, handle the KAS2108E with ESD-safe materials and tools, and follow proper ESD handling procedures. Additionally, consider adding ESD protection devices, such as TVS diodes, to the PCB design.
Store the KAS2108E in its original packaging or in a dry, ESD-safe environment at room temperature (20°C to 30°C) and humidity below 60%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KAS2108E Overview

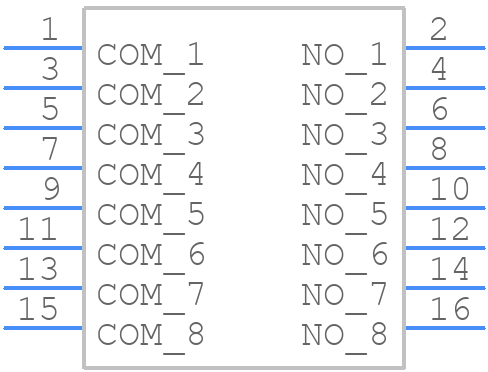

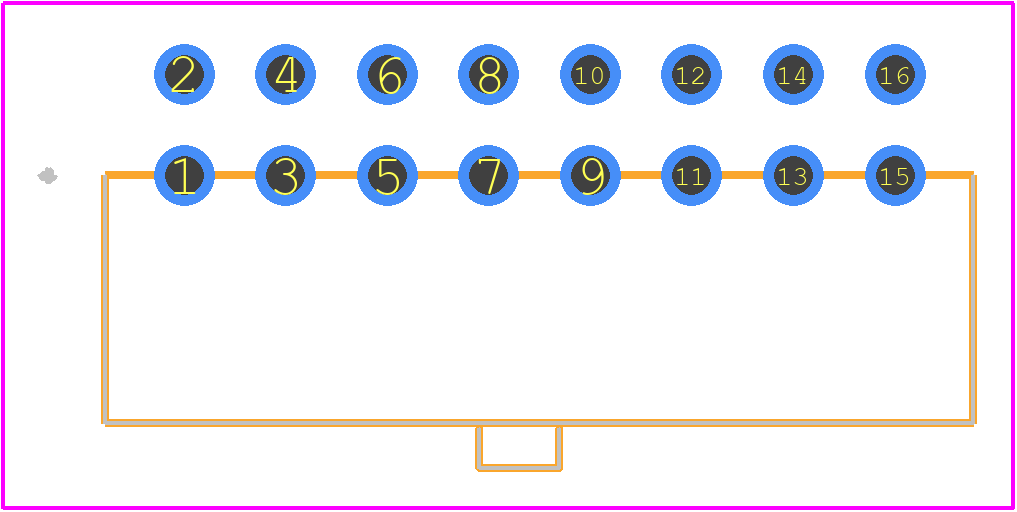

Use the download button to access the KAS2108E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KAS21,
or try a keyword search, such as DIP Switches
