- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for kat-0+
- Part Number kat-0+
- Manufacturer Mini-Circuits
- Pin Count 7
- Part Category Attenuator or Isolator
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - MC1630+
- Released Date Sep 7, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
kat-0+ Details
-
Manufacturer Part Number:
KAT-0+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-6
-
ECCN Code:
EAR99
-
Date Of Intro:
2018-05-21
-
Manufacturer:
Mini-Circuits
-
YTEOL:
8
-
Attenuation-Nom:
0.03 dB
-
Construction:
COMPONENT
-
Input Power-Max (CW):
33.01 dBm
kat-0+ Frequently Asked Questions (FAQs)
-
A good PCB layout and grounding scheme is crucial for optimal performance. Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane around the amplifier. The amplifier's ground pins should be connected to the ground plane with short, direct traces.
-
The input and output impedance matching networks depend on the specific application and frequency range. Mini-Circuits provides a general guideline for impedance matching in the datasheet, but it's recommended to consult with an RF engineer or use simulation tools like Genesys or ADS to optimize the matching networks for your specific application.
-
The maximum safe operating temperature for the KAT-0+ is 85°C. Operating the amplifier above this temperature can reduce its reliability and lifespan. It's recommended to ensure good airflow and heat sinking to keep the amplifier within its recommended operating temperature range.
-
Yes, the KAT-0+ can be used in a push-pull configuration to improve linearity and reduce distortion. However, this requires careful design and layout considerations to ensure proper balancing and impedance matching. Consult with an RF engineer or Mini-Circuits' application notes for more information.
-
The recommended biasing scheme for the KAT-0+ is a single-supply voltage of 12-15V, with a quiescent current of around 100-150mA. The biasing scheme should be designed to ensure stable operation and minimize thermal runaway. Consult with an RF engineer or Mini-Circuits' application notes for more information.
Trust Checks
Community Provided
System Verified
Community Approved
kat-0+ Overview

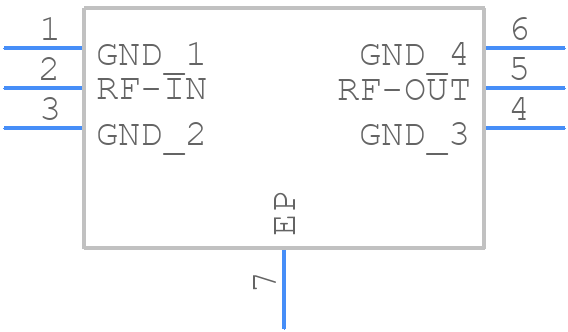

Use the download button to access the kat-0+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like kat-0,
or try a keyword search, such as RF/Microwave Attenuators
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
