- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for KAT-10+
- Part Number KAT-10+
- Manufacturer Mini-Circuits
- Pin Count 7
- Part Category Attenuator or Isolator
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - MC1630+
- Released Date Sep 9, 2024
- Last Modified Date Sep 9, 2024 9:51 AM UTC
- Pinout / Pin List Click Here (Member Only)
KAT-10+ Details
-
Manufacturer Part Number:
KAT-10+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Date Of Intro:
2018-05-21
-
Manufacturer:
Mini-Circuits
-
YTEOL:
8
-
Attenuation-Nom:
9.9 dB
-
Construction:
COMPONENT
-
Input Power-Max (CW):
32.304 dBm
-
Mounting Feature:
SURFACE MOUNT
KAT-10+ Frequently Asked Questions (FAQs)
-
A good PCB layout and grounding scheme is crucial for optimal performance. Mini-Circuits recommends a multi-layer PCB with a solid ground plane, and a star-grounding scheme to minimize noise and radiation. A detailed application note is available from Mini-Circuits.
-
The choice of impedance matching network depends on the specific application and frequency range. Mini-Circuits provides a range of impedance matching networks, and recommends consulting their application notes and technical support team for guidance on selecting the optimal network.
-
The maximum power handling capability of the KAT-10+ is 1W. Exceeding this power rating may result in reduced performance, reliability, and lifespan of the device.
-
Proper biasing is critical for optimal performance. Mini-Circuits recommends following the recommended biasing scheme outlined in the datasheet, and consulting their application notes and technical support team for guidance on biasing and tuning.
-
Thermal management is crucial for reliable operation. Mini-Circuits recommends providing adequate heat sinking and airflow to maintain a junction temperature below 150°C. A detailed thermal management guide is available from Mini-Circuits.
Trust Checks
Community Provided
System Verified
Community Approved
KAT-10+ Overview

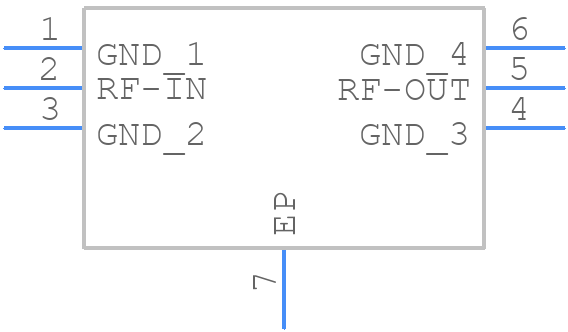

Use the download button to access the KAT-10+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KAT-1,
or try a keyword search, such as RF/Microwave Attenuators
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
