KAT-3+ - Mini-Circuits

Description: Attenuators 3 dB SMT Fixed Attenuator, DC - 43500 MHz, 50ohm

Download KAT-3+ Model

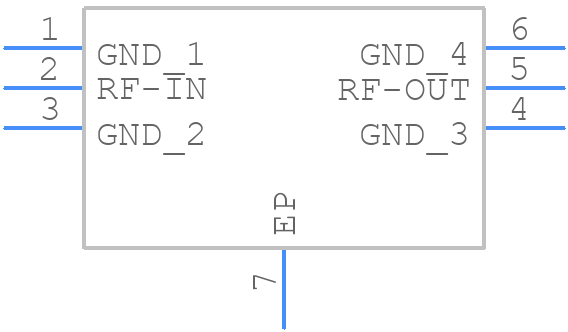

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
KAT-3+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC1630+
click to zoom
3D Models
KAT-3+ - Mini-Circuits  - 3D model - Small Outline No-lead - MC1630+
click to zoom

KAT-3+ Details

  • Manufacturer Part Number:

    KAT-3+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Attenuation-Nom:

    2.8 dB

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.01 dBm

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    43500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.08,25

  • RF/Microwave Device Type:

    FIXED ATTENUATOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Nickel (Sn/Ag/Ni)

  • VSWR-Max:

    1.62

KAT-3+ Frequently Asked Questions (FAQs)

  • A good PCB layout and grounding scheme is crucial for optimal performance. Mini-Circuits recommends a multi-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Also, it's essential to have a good grounding scheme, such as a star-grounding configuration, to minimize noise and interference.
  • The input and output impedance of the KAT-3+ should be matched to the impedance of your system for optimal power transfer. Typically, a 50-ohm impedance is used, but it depends on the specific application. Consult the datasheet and application notes for guidance on impedance matching.
  • The KAT-3+ can handle up to 1W of input power, but it's recommended to derate the power handling to ensure reliable operation. Consult the datasheet for specific power handling guidelines.
  • To minimize noise and interference, use proper shielding, grounding, and filtering techniques. Also, keep the KAT-3+ away from noisy components and use a low-noise power supply. Additionally, consider using a pi-filter or a common-mode choke to reduce noise and interference.
  • The KAT-3+ operates over a temperature range of -40°C to +85°C. However, the device's performance may degrade at extreme temperatures. Consult the datasheet for specific temperature-related performance characteristics.
