KAT-5+ - Mini-Circuits

Description: Attenuators 5 dB SMT Fixed Attenuator, DC - 43500 MHz, 50ohm

Download KAT-5+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

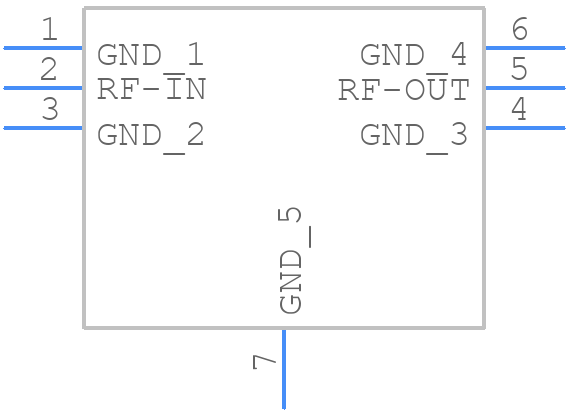

KAT-5+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
KAT-5+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC1630_1_2020
click to zoom
3D Models
KAT-5+ - Mini-Circuits - 3D model - Small Outline No-lead - MC1630_1_2020
click to zoom

KAT-5+ Details

  • Manufacturer Part Number:

    KAT-5+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-05-21

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Attenuation-Nom:

    4.9 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.46 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    43500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    FIXED ATTENUATOR

  • Surface Mount:

    YES

  • VSWR-Max:

    1.9

KAT-5+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint for the KAT-5+ in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The KAT-5+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to match the amplifier's impedance to your system's impedance.
  • The KAT-5+ can handle up to +10 dBm of input power. Exceeding this limit may cause compression, distortion, or even damage to the amplifier.
  • The KAT-5+ requires a positive voltage supply (Vcc) and a negative voltage supply (Vee). Typically, Vcc is set to +12V to +15V, and Vee is set to -12V to -15V. The recommended bias current is 120mA to 150mA.
  • The KAT-5+ is designed to operate from -40°C to +85°C. Operating outside this range may affect the amplifier's performance, reliability, and lifespan.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KAT-5+ Overview

Use the download button to access the KAT-5+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KAT-5, or try a keyword search, such as RF/Microwave Attenuators

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
