KAT-6+ - Mini-Circuits

Description: Attenuators MMIC ATTENUATOR 6 DB

Download KAT-6+ Model

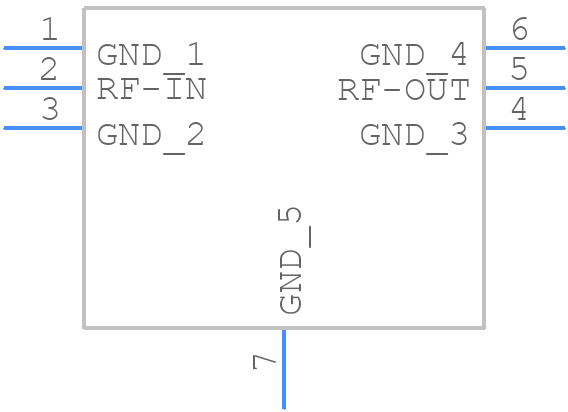

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
KAT-6+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC1630-1_2024
click to zoom
3D Models
KAT-6+ - Mini-Circuits  - 3D model - Small Outline No-lead - MC1630-1_2024
click to zoom

KAT-6+ Details

  • Manufacturer Part Number:

    KAT-6+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Attenuation-Nom:

    5.9 dB

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    32.041 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    43500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.08,25

  • RF/Microwave Device Type:

    FIXED ATTENUATOR

  • Surface Mount:

    YES

  • VSWR-Max:

    1.44

KAT-6+ Frequently Asked Questions (FAQs)

  • A good PCB layout and grounding scheme is crucial for optimal performance. Mini-Circuits recommends a multi-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Also, it's essential to have a good grounding scheme, with multiple vias to the ground plane, to minimize noise and radiation.
  • To choose the right impedance matching network, you need to consider the input and output impedances of the KAT-6+, as well as the impedance of your system. Mini-Circuits provides a range of impedance matching networks, and you can also use their online tools to help you design a custom matching network.
  • The maximum power handling of the KAT-6+ is 1W. To protect it from overvoltage, you should use a voltage limiter or a surge protector, and ensure that your system is designed to handle the maximum power rating. You should also follow proper PCB design and layout practices to minimize the risk of overvoltage damage.
  • To optimize the KAT-6+ for low noise figure and high gain, you should ensure that the device is properly biased, and that the input and output impedances are matched. You should also use a low-noise power supply, and minimize the noise floor of your system. Additionally, you can use techniques such as noise matching and gain optimization to further improve performance.
  • The operating temperature range of the KAT-6+ is -40°C to 85°C. Temperature can affect the performance of the KAT-6+, with higher temperatures causing a decrease in gain and an increase in noise figure. It's essential to ensure that the device is operated within the recommended temperature range, and that proper thermal management is implemented to minimize the effects of temperature on performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KAT-6+ Overview

Use the download button to access the KAT-6+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KAT-6, or try a keyword search, such as RF/Microwave Attenuators
