KAT-7+ - Mini-Circuits

Description: KAT-7+ 7 dB SMT Fixed Attenuator, DC - 43500 MHz, 50Ω

Download KAT-7+ Model

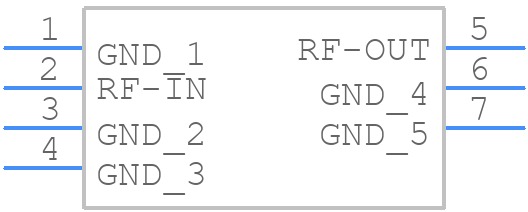

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
KAT-7+ - Mini-Circuits PCB footprint - Other - Other - KAT-7+-1
click to zoom
3D Models
KAT-7+ - Mini-Circuits  - 3D model - Other - KAT-7+-1
click to zoom

KAT-7+ Details

  • Manufacturer Part Number:

    KAT-7+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-05-21

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Attenuation-Nom:

    7 dB

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.139 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    43500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.08,25

  • RF/Microwave Device Type:

    FIXED ATTENUATOR

  • Surface Mount:

    YES

  • VSWR-Max:

    1.69
