The recommended PCB layout for optimal thermal performance involves placing the device on a thick copper plane, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to ensure good airflow.
To ensure reliable operation at high temperatures, it's essential to follow the recommended derating curves, ensure good thermal management, and avoid exceeding the maximum junction temperature (Tj) of 150°C.
The maximum surge current rating for KBPC2510W-G is typically 2-3 times the rated current (25A) for a short duration (e.g., 8.3ms). However, it's recommended to consult with the manufacturer or a qualified engineer for specific guidance on surge current handling.
Yes, you can use multiple KBPC2510W-G devices in parallel to increase the current rating, but it's crucial to ensure that the devices are properly matched, and the current sharing is balanced to avoid overheating or uneven stress on individual devices.
The recommended fuse rating for overcurrent protection depends on the specific application and system requirements. As a general guideline, a fuse with a rating of 1.5-2 times the maximum expected current should be used, but it's recommended to consult with a qualified engineer or the manufacturer for specific guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KBPC2510W-G Overview

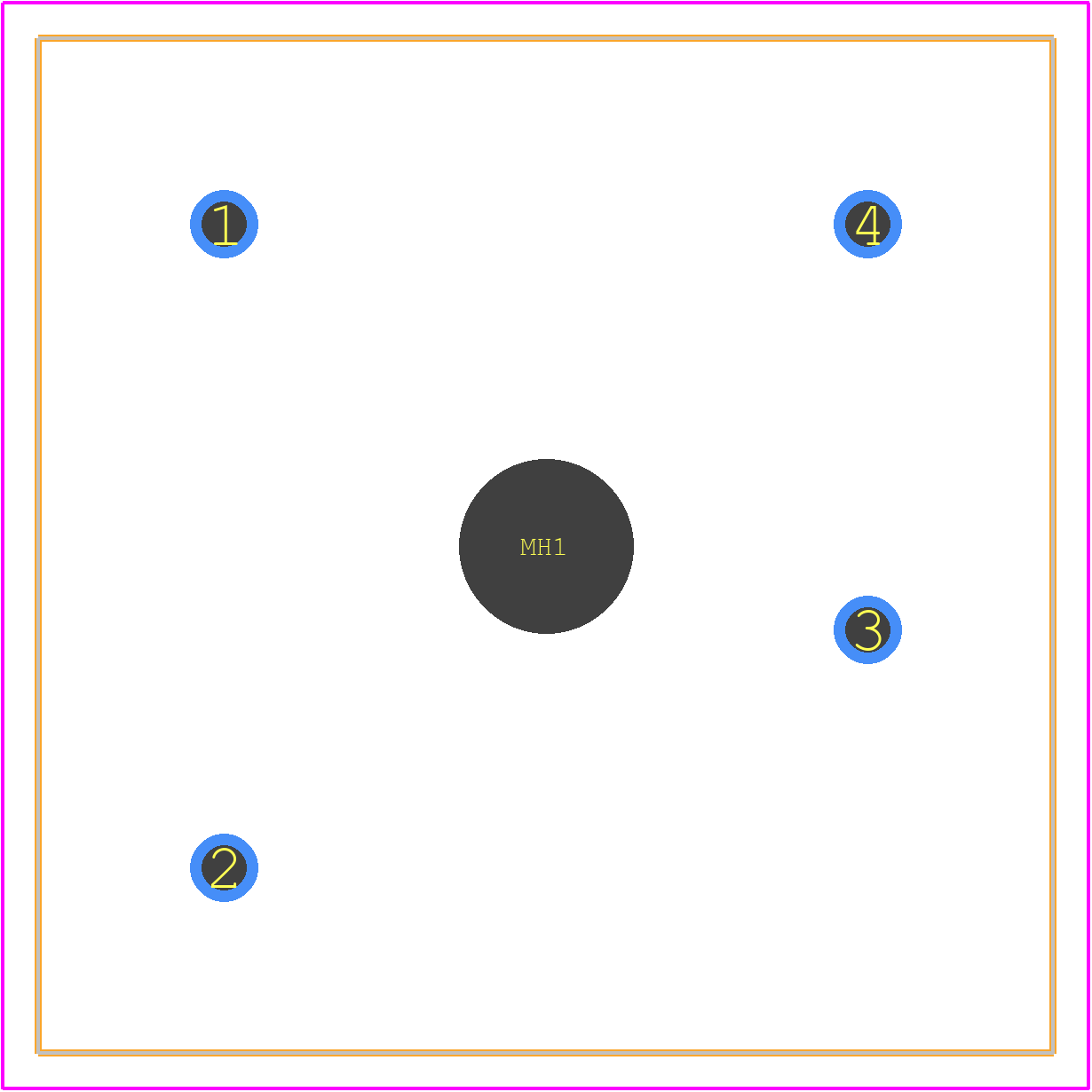

Use the download button to access the KBPC2510W-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KBPC2,
or try a keyword search, such as Bridge Rectifier Diodes
