KBPC2510W - GeneSiC Semiconductor

Description: Bridge Rectifier Single Phase Standard 1 kV Through Hole KBPC-W 25 A,-55°C ~ 150°C

Download KBPC2510W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KBPC2510W - GeneSiC Semiconductor - PCB symbol
click to zoom
PCB Footprints

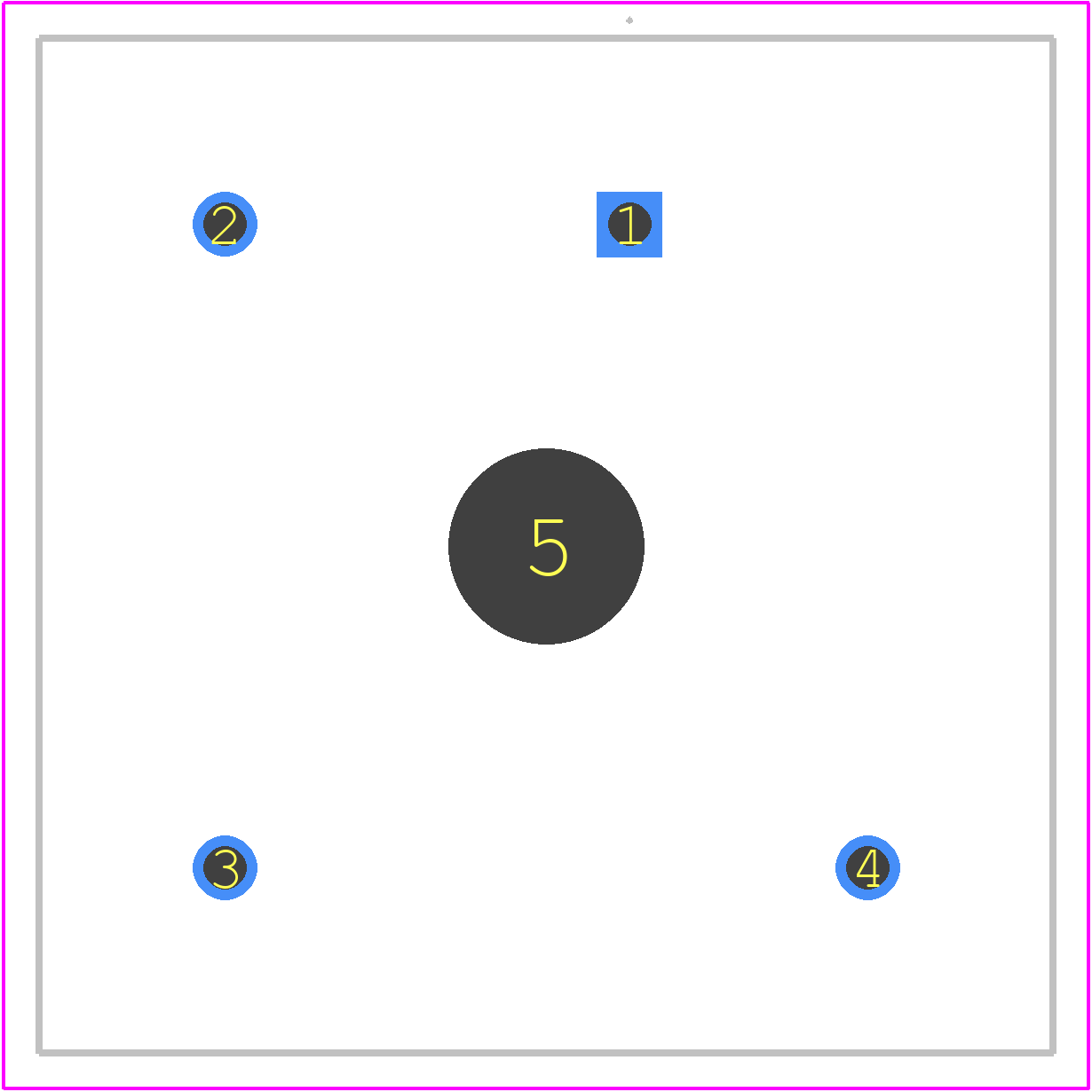

KBPC2510W - GeneSiC Semiconductor PCB footprint - Other - Other - KBPC2510W-2
click to zoom
3D Models
KBPC2510W - GeneSiC Semiconductor - 3D model - Other - KBPC2510W-2
click to zoom

KBPC2510W Details

  • Manufacturer Part Number:

    KBPC2510W

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    GeneSic Semiconductor Inc

  • Breakdown Voltage-Min:

    1000 V

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • Non-rep Pk Forward Current-Max:

    350 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Operating Temperature-Max:

    150 °C

  • Output Current-Max:

    25 A

  • Rep Pk Reverse Voltage-Max:

    1000 V

  • Surface Mount:

    NO

KBPC2510W Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the device, and a large copper area on the PCB can help to dissipate heat. The datasheet provides a recommended PCB layout, but it's essential to follow good thermal design practices to ensure optimal performance.
  • Ensure that the device is operated within the recommended temperature range (up to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Monitor the device's junction temperature and adjust the operating conditions accordingly.
  • A gate drive circuit with a low impedance output and a high current capability is recommended. The gate drive voltage should be between 10-15V, and the gate resistance should be as low as possible (e.g., 10-20 ohms).
  • Use a voltage clamp or a transient voltage suppressor (TVS) to protect the device from overvoltage. Implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
  • Store the device in a dry, cool place, away from direct sunlight and moisture. Handle the device by the body, avoiding touching the leads or die. Use an anti-static wrist strap or mat when handling the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KBPC2510W Overview

Use the download button to access the KBPC2510W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KBPC2, or try a keyword search, such as Bridge Rectifier Diodes
