KBPC3502W - GeneSiC Semiconductor

Description: Bridge Rectifiers 200 V - 35 A

Download KBPC3502W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

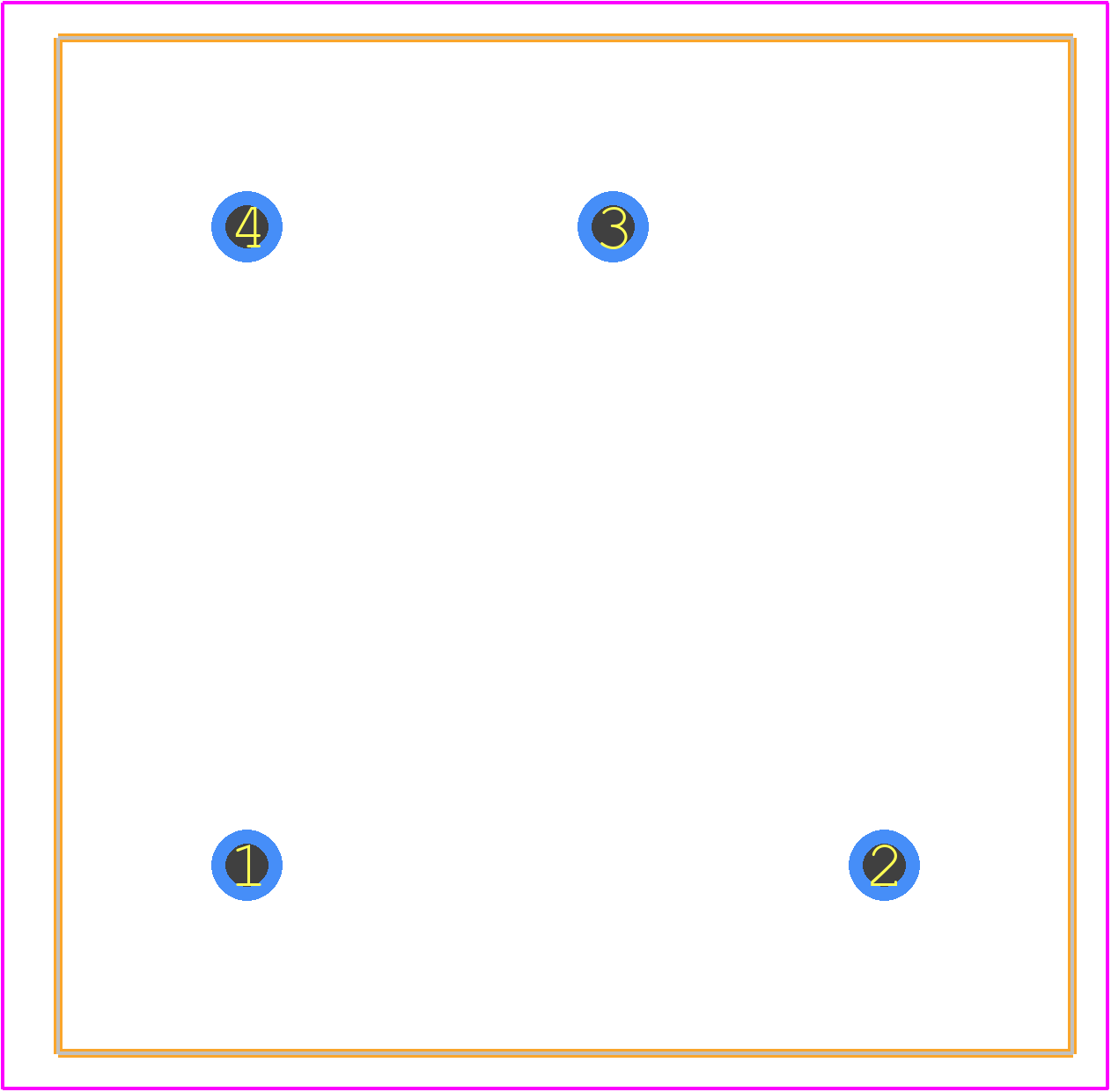

KBPC3502W - GeneSiC Semiconductor PCB footprint - Other - Other - KBPC3502W-2
click to zoom
3D Models
KBPC3502W - GeneSiC Semiconductor  - 3D model - Other - KBPC3502W-2
click to zoom

KBPC3502W Details

  • Manufacturer Part Number:

    KBPC3502W

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    GeneSic Semiconductor Inc

  • Breakdown Voltage-Min:

    200 V

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • Non-rep Pk Forward Current-Max:

    400 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Operating Temperature-Max:

    150 °C

  • Output Current-Max:

    35 A

  • Rep Pk Reverse Voltage-Max:

    200 V

  • Surface Mount:

    NO
