KBPC3504W - GeneSiC Semiconductor

Description: Bridge Rectifier Single Phase Standard 400 V Through Hole KBPC-W

Download KBPC3504W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KBPC3504W - GeneSiC Semiconductor - PCB symbol
click to zoom

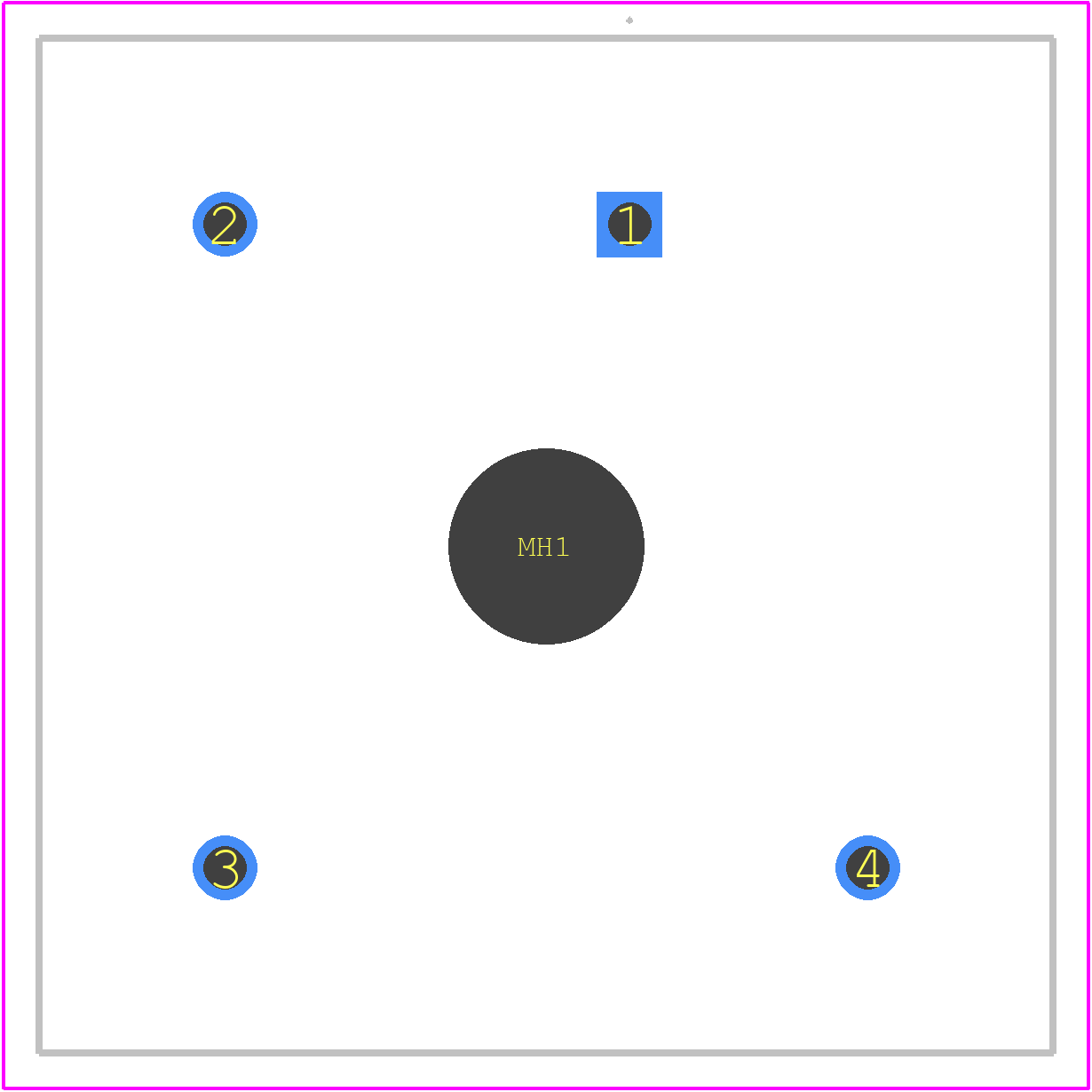

PCB Footprints
KBPC3504W - GeneSiC Semiconductor PCB footprint - Other - Other - KBPC3504W-2
click to zoom

KBPC3504W Details

  • Manufacturer Part Number:

    KBPC3504W

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    GeneSic Semiconductor Inc

  • Breakdown Voltage-Min:

    400 V

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • Non-rep Pk Forward Current-Max:

    400 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Operating Temperature-Max:

    150 °C

  • Output Current-Max:

    35 A

  • Rep Pk Reverse Voltage-Max:

    400 V

  • Surface Mount:

    NO

KBPC3504W Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the KBPC3504W is -40°C to 150°C.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power handling capability and ensure good thermal management, such as using a heat sink or thermal interface material.
  • The recommended soldering temperature profile for the KBPC3504W is a peak temperature of 260°C for 10 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
  • Yes, the KBPC3504W is suitable for high-reliability applications such as aerospace or automotive, as it is designed and manufactured to meet the requirements of these industries, including AEC-Q101 and MIL-STD-883 standards.
  • To protect the KBPC3504W from ESD, it is recommended to handle the device in an ESD-controlled environment, use ESD-protective packaging and handling materials, and ensure that all personnel handling the device are grounded.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KBPC3504W Overview

Use the download button to access the KBPC3504W schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like KBPC3, or try a keyword search, such as Bridge Rectifier Diodes
