The recommended PCB layout for optimal thermal performance involves placing the device on a thick copper plane, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to ensure good airflow.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves, provide adequate heat sinking, and ensure good airflow around the device. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
The acceptable storage and handling conditions for KBPC3506W-G include storing the devices in a dry, clean environment with a temperature range of -40°C to 125°C, and handling them with anti-static precautions to prevent damage from electrostatic discharge.
While KBPC3506W-G is a high-quality device, it may not meet the specific requirements of high-reliability or aerospace applications. It's essential to consult with the manufacturer and review the device's qualification data to determine its suitability for such applications.
The typical failure modes of KBPC3506W-G include overheating, overvoltage, and electrical overstress. To mitigate these failure modes, ensure proper thermal management, follow the recommended operating conditions, and implement adequate protection circuits to prevent overvoltage and electrical overstress.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KBPC3506W-G Overview

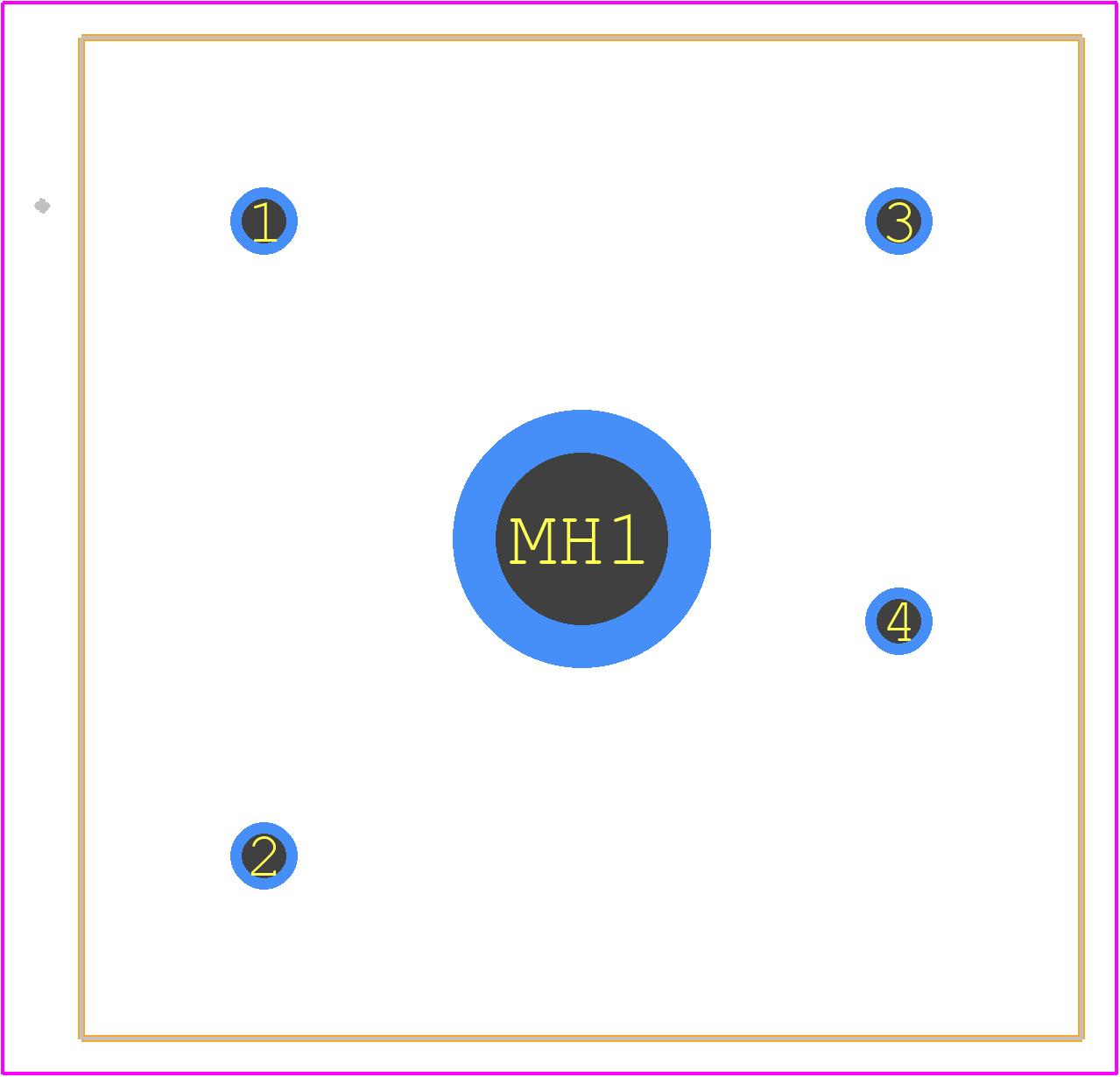

Use the download button to access the KBPC3506W-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KBPC3,
or try a keyword search, such as Bridge Rectifier Diodes
