KBPC3510W-G - Comchip Technology

Description: Bridge Rectifiers DIODE RECT BRIDGE 35A 1Kv

Download KBPC3510W-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KBPC3510W-G - Comchip Technology - PCB symbol
click to zoom
PCB Footprints

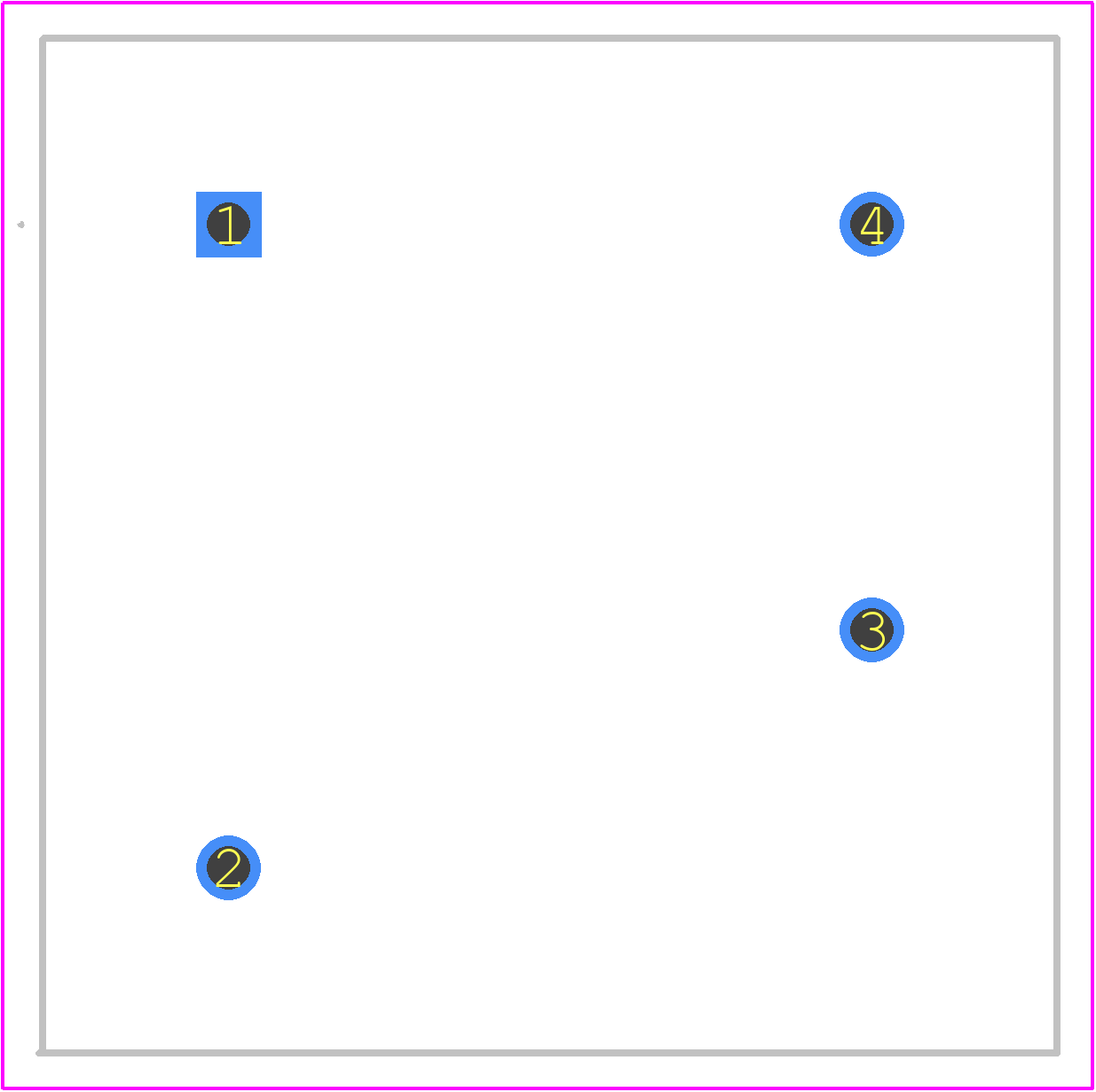

KBPC3510W-G - Comchip Technology PCB footprint - Other - Other - KBPC3510W-G-2
click to zoom
3D Models
KBPC3510W-G - Comchip Technology - 3D model - Other - KBPC3510W-G-2
click to zoom

KBPC3510W-G Details

  • Manufacturer Part Number:

    KBPC3510W-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Comchip Technology Corporation Ltd

  • YTEOL:

    6.85

  • Breakdown Voltage-Min:

    1000 V

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • JESD-30 Code:

    S-XUFM-W4

  • Non-rep Pk Forward Current-Max:

    400 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    35 A

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    SQUARE

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    260

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    1000 V

  • Surface Mount:

    NO

  • Terminal Form:

    WIRE

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    10

KBPC3510W-G Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the device to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are recommended for optimal thermal performance.
  • Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink if necessary, and ensure good airflow around the device.
  • The maximum allowed voltage on the input pins is 1.5V above the maximum rated voltage (Vr) specified in the datasheet.
  • Yes, the KBPC3510W-G is designed for high-reliability applications. It has undergone rigorous testing and meets the requirements of various industry standards, including AEC-Q101.
  • Handle the device by the body or the anti-static foam tray to prevent ESD damage. Use an ESD wrist strap or mat when handling the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KBPC3510W-G Overview

Use the download button to access the KBPC3510W-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KBPC3, or try a keyword search, such as Bridge Rectifier Diodes
