The recommended PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A minimum of 1 oz copper thickness is recommended, and the PCB should be designed to minimize thermal resistance.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current rating according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow around the device, and consider using a heat sink or thermal interface material to improve heat dissipation.
The maximum allowable voltage imbalance between the AC input lines is typically 10% to 15% of the rated voltage. Exceeding this limit may cause uneven current sharing between the diodes, leading to reduced reliability and potential failure.
Yes, the KBPC3510W can be used in a switching power supply application, but it is essential to ensure that the device is operated within its specified frequency range and that the input voltage is within the recommended range. Additionally, consider the device's reverse recovery time and softness factor to ensure compatibility with the switching frequency and topology.
The recommended fuse rating for overcurrent protection depends on the specific application and the maximum expected current. As a general guideline, a fuse rating of 1.5 to 2 times the device's rated current is recommended. However, it is essential to consult the datasheet and application notes for specific guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KBPC3510W Overview

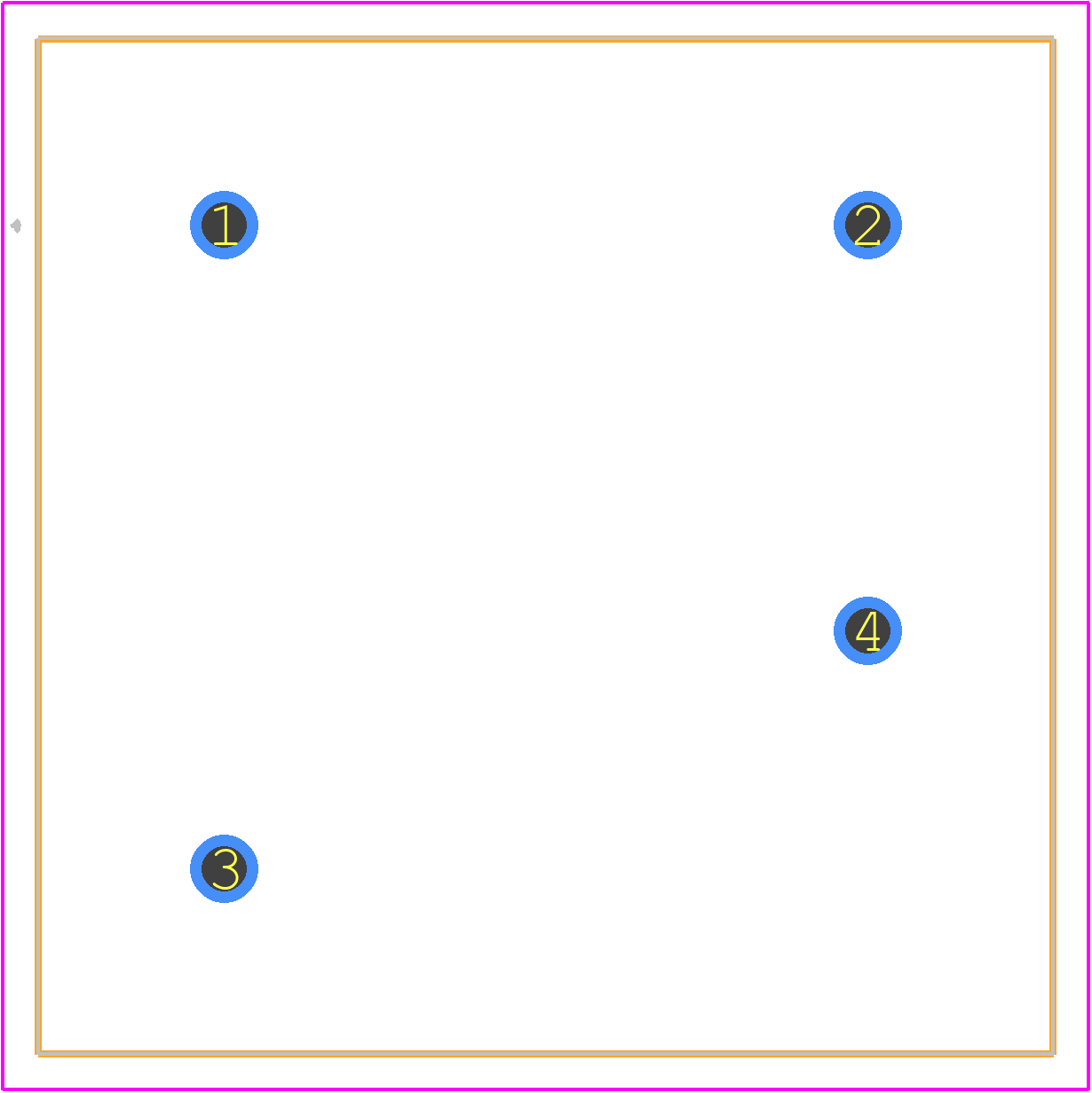

Use the download button to access the KBPC3510W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KBPC3,
or try a keyword search, such as Bridge Rectifier Diodes
