KBPC3510WP - Diotec

Description: Bridge Rectifiers Bridge, single phase, KBPC, 1000V, 35A, 150C

Download KBPC3510WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

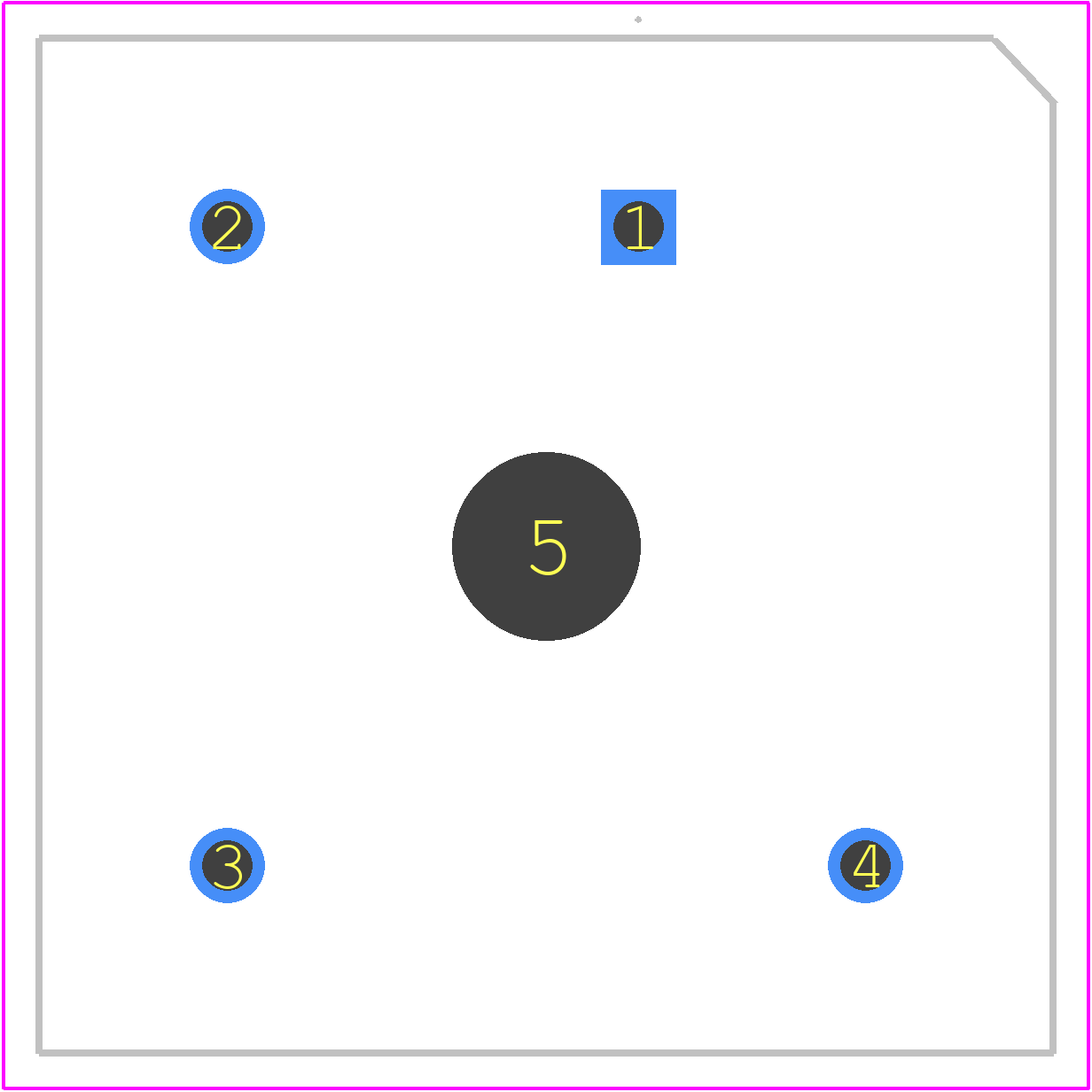

KBPC3510WP - Diotec PCB footprint - Other - Other - KBPC-WP_2026-1
click to zoom
3D Models
KBPC3510WP - Diotec  - 3D model - Other - KBPC-WP_2026-1
click to zoom

KBPC3510WP Details

  • Manufacturer Part Number:

    KBPC3510WP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    4

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Diotec Semiconductor AG

  • YTEOL:

    6.85

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • JESD-30 Code:

    S-PUFM-W4

  • JESD-609 Code:

    e4

  • Non-rep Pk Forward Current-Max:

    400 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -50 °C

  • Output Current-Max:

    35 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    1000 V

  • Reverse Current-Max:

    10 µA

  • Reverse Recovery Time-Max:

    1.5 µs

  • Reverse Test Voltage:

    1000 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Silver (Ag)

  • Terminal Form:

    WIRE

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    10

KBPC3510WP Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended.
  • Ensure good thermal management by providing adequate heat sinking and airflow. Also, derate the device's power handling according to the temperature derating curve in the datasheet.
  • The device can withstand voltage transients of up to 1.5 times the maximum rated voltage for a duration of 100 ms, as per the IEC 61000-4-5 standard.
  • Yes, the KBPC3510WP is designed for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability.
  • Use a transient voltage suppressor (TVS) or a metal oxide varistor (MOV) in parallel with the device to protect it from EOS. Also, ensure that the device is operated within its recommended operating conditions.
