KBPC3516WP - Diotec

Description: Bridge Rectifier Single Phase Standard 1.6 kV Through Hole KBPC WP 35 A 10 µA 4-Square, KBPC WP -50°C ~ 150°C (TJ)

Download KBPC3516WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KBPC3516WP - Diotec - PCB symbol
click to zoom
PCB Footprints

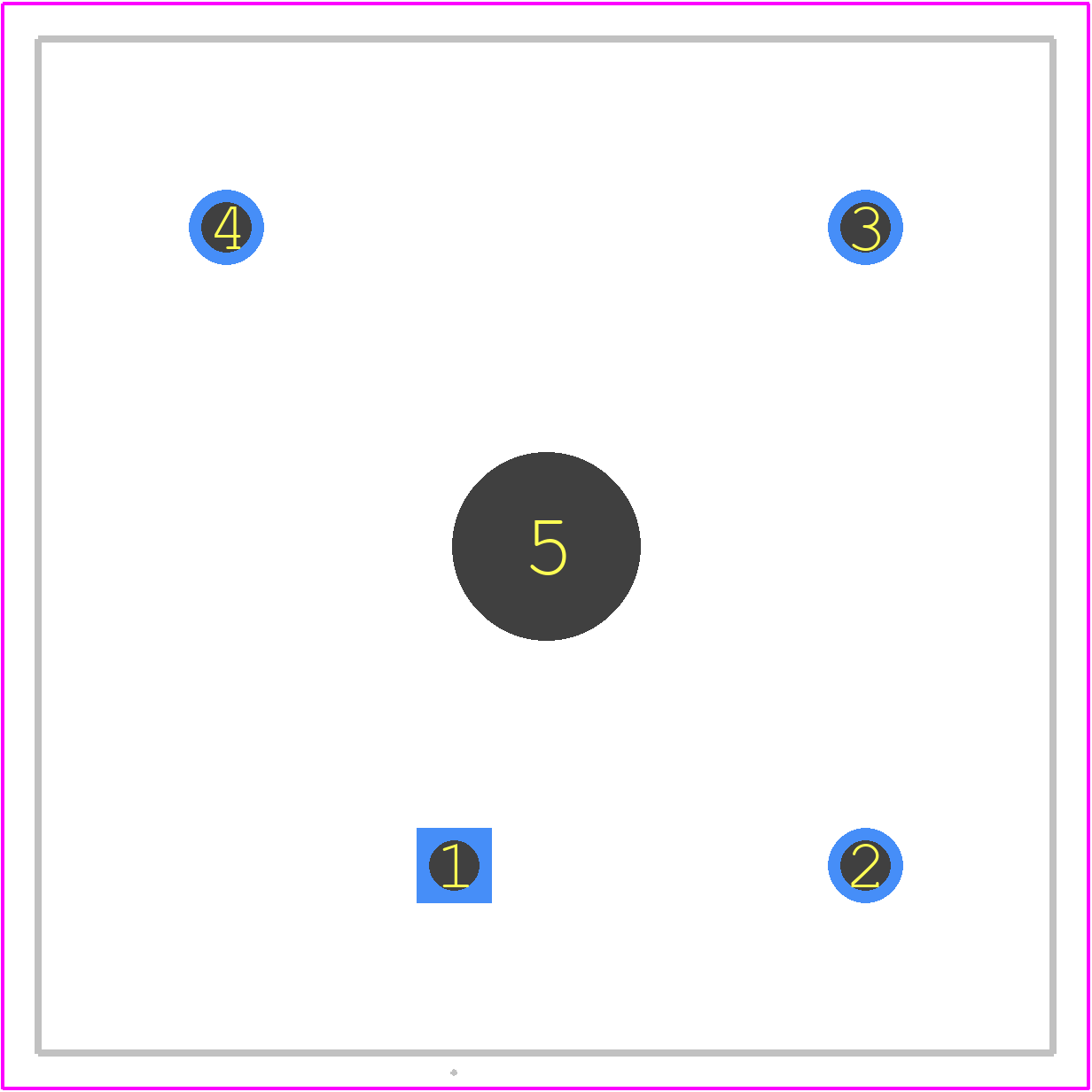

KBPC3516WP - Diotec PCB footprint - Other - Other - KBPC-WP_2026
click to zoom
3D Models
KBPC3516WP - Diotec - 3D model - Other - KBPC-WP_2026
click to zoom

KBPC3516WP Details

  • Manufacturer Part Number:

    KBPC3516WP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    2

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Diotec Semiconductor AG

  • YTEOL:

    6.85

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • JESD-30 Code:

    S-PUFM-W4

  • JESD-609 Code:

    e4

  • Non-rep Pk Forward Current-Max:

    400 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -50 °C

  • Output Current-Max:

    35 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    1600 V

  • Reverse Current-Max:

    10 µA

  • Reverse Recovery Time-Max:

    1.5 µs

  • Reverse Test Voltage:

    1600 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Silver (Ag)

  • Terminal Form:

    WIRE

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    10

KBPC3516WP Frequently Asked Questions (FAQs)

  • A good PCB layout for the KBPC3516WP should ensure good thermal conductivity. Place the device near a thermal pad or a copper pour, and use thermal vias to dissipate heat. Keep the PCB layout symmetrical to reduce thermal gradients.
  • To calculate power dissipation, use the formula: Pd = (Vf x If) + (Rs x If^2), where Vf is the forward voltage drop, If is the forward current, and Rs is the series resistance. You can find these values in the datasheet.
  • The maximum allowable case temperature for the KBPC3516WP is 150°C. However, it's recommended to keep the case temperature below 120°C for optimal reliability and performance.
  • The KBPC3516WP is designed for general-purpose rectification and is not optimized for high-frequency applications. If you need to use it in a high-frequency application, ensure that the device is properly snubbed and derated to prevent overheating and premature failure.
  • Use a transient voltage suppressor (TVS) or a metal-oxide varistor (MOV) in parallel with the KBPC3516WP to protect it from voltage transients and spikes. You can also add a fuse or a current-limiting resistor in series with the device for additional protection.
