KBPC5001W-G - Comchip Technology

Description: Bridge Rectifiers RECT BRIDGE 50A 100V

Download KBPC5001W-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

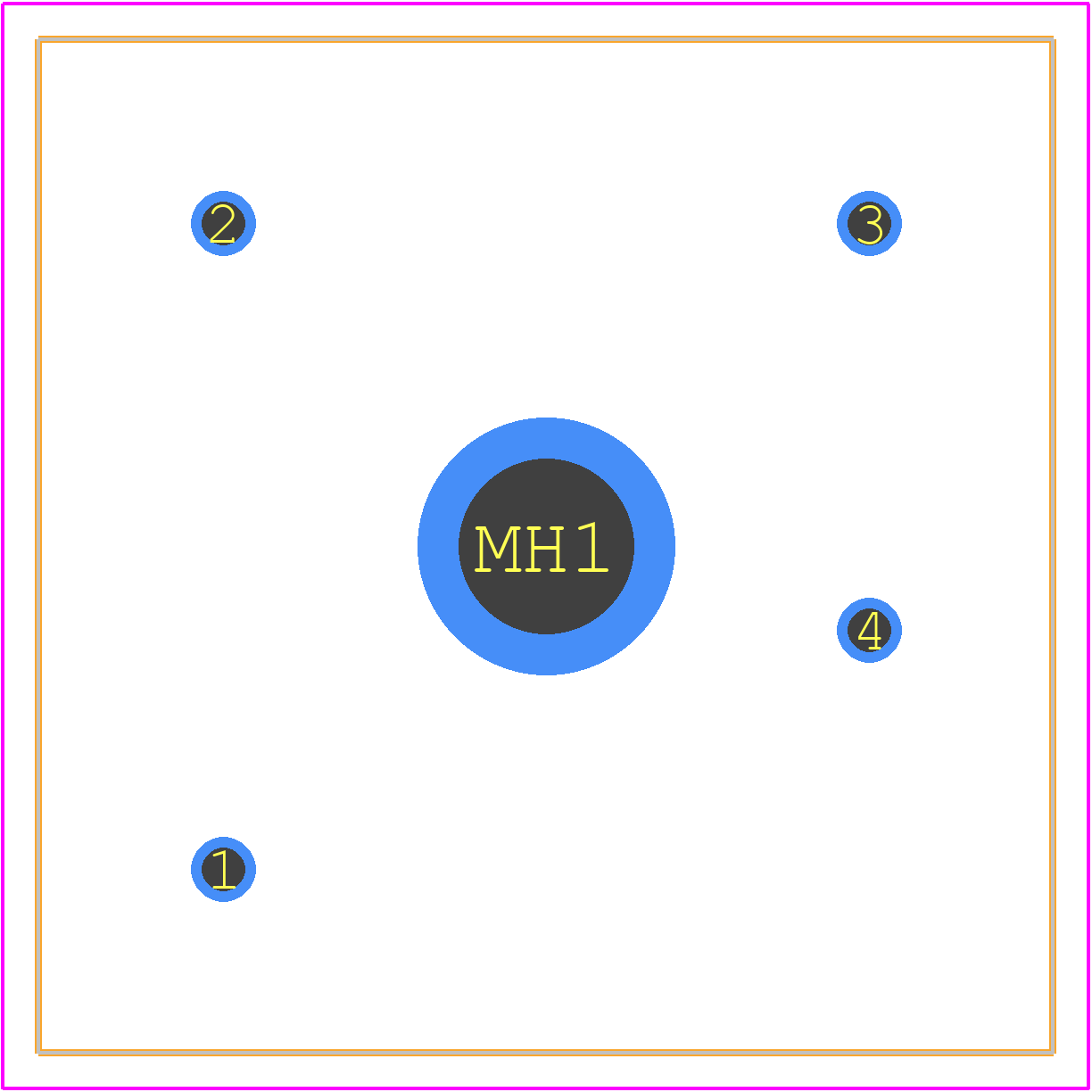

KBPC5001W-G - Comchip Technology PCB footprint - Other - Other - KBPC5001W-G-2
click to zoom
3D Models
KBPC5001W-G - Comchip Technology  - 3D model - Other - KBPC5001W-G-2
click to zoom

KBPC5001W-G Details

  • Manufacturer Part Number:

    KBPC5001W-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Comchip Technology Corporation Ltd

  • YTEOL:

    6.85

  • Breakdown Voltage-Min:

    100 V

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • JESD-30 Code:

    S-XUFM-W4

  • Non-rep Pk Forward Current-Max:

    500 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    50 A

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    SQUARE

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    260

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    100 V

  • Surface Mount:

    NO

  • Terminal Form:

    WIRE

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    10

KBPC5001W-G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thick copper plane, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to ensure good airflow.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink or thermal interface material if necessary.
  • The maximum surge current rating for the KBPC5001W-G is typically specified as 100A for 10ms, but it's recommended to consult with the manufacturer or a reliable source for the most up-to-date information.
  • Yes, the KBPC5001W-G can be used in a parallel configuration to increase the current rating, but it's crucial to ensure that the devices are properly matched, and the connections are made with low impedance to avoid current imbalance and thermal runaway.
  • The recommended fuse rating for overcurrent protection depends on the specific application and operating conditions. A general guideline is to choose a fuse with a rating that is 1.5 to 2 times the maximum expected current.
