The recommended PCB layout for optimal thermal performance involves placing the device on a thick copper plane, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to ensure good airflow.
To ensure reliable soldering, use a soldering iron with a temperature range of 250-270°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or heat, and ensure the component is properly aligned with the PCB pads.
The maximum allowable voltage imbalance between the AC input lines is typically 10-15% of the rated voltage. Exceeding this limit may lead to reduced performance, overheating, or even damage to the device.
While the KBPC5010W is designed for 50/60Hz AC input, it can be used in high-frequency switching applications up to 400Hz. However, the device's performance and reliability may be affected, and additional thermal management may be required.
To protect the KBPC5010W from surge currents and voltage spikes, consider adding a surge absorber or a metal oxide varistor (MOV) in parallel with the device. Additionally, ensure the device is properly fused and that the AC input lines are filtered to reduce electromagnetic interference (EMI).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KBPC5010W Overview

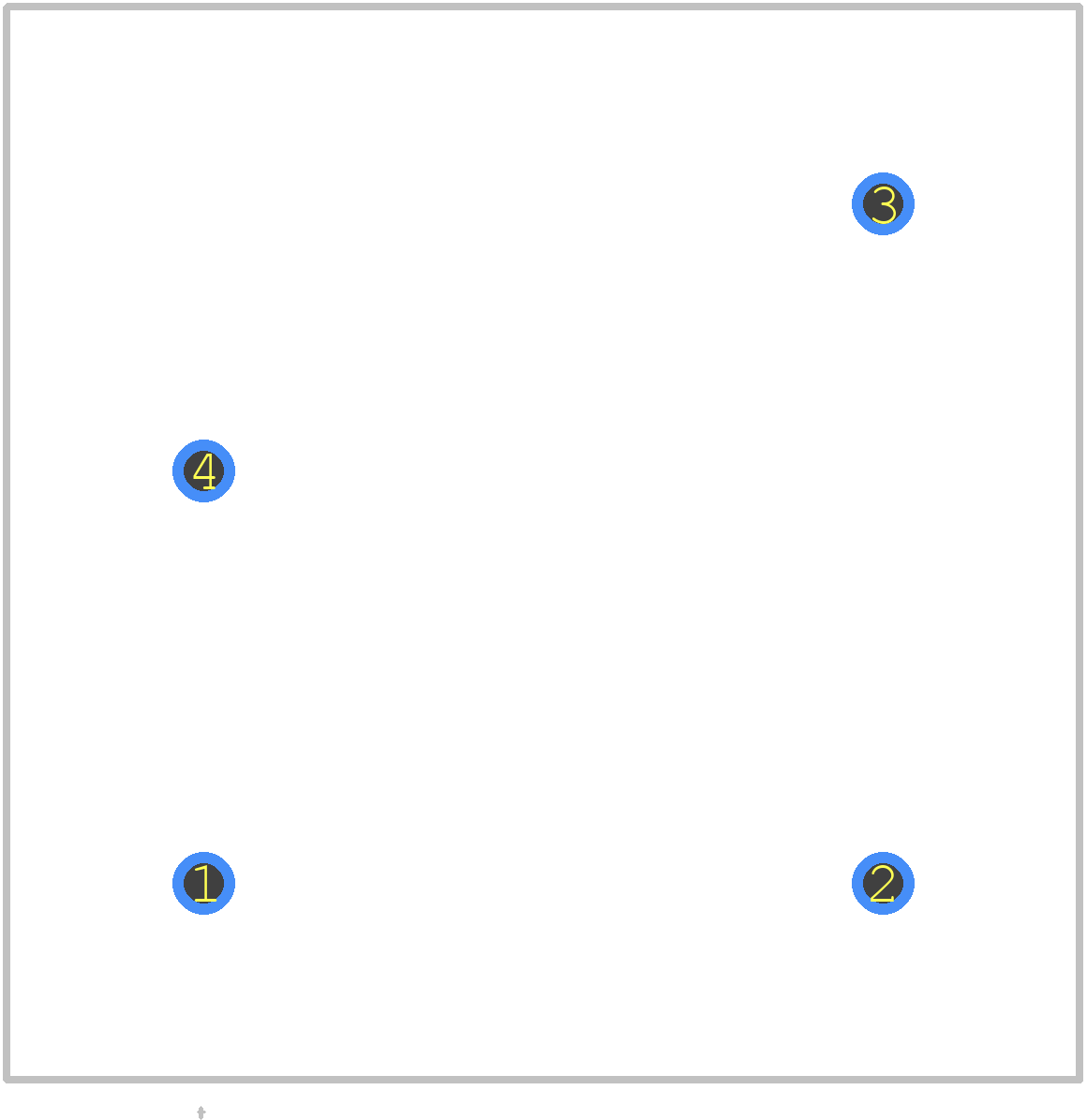

Use the download button to access the KBPC5010W schematic symbol, PCB footprint, and 3D model.
