KC14A30.001NPS - E-Switch

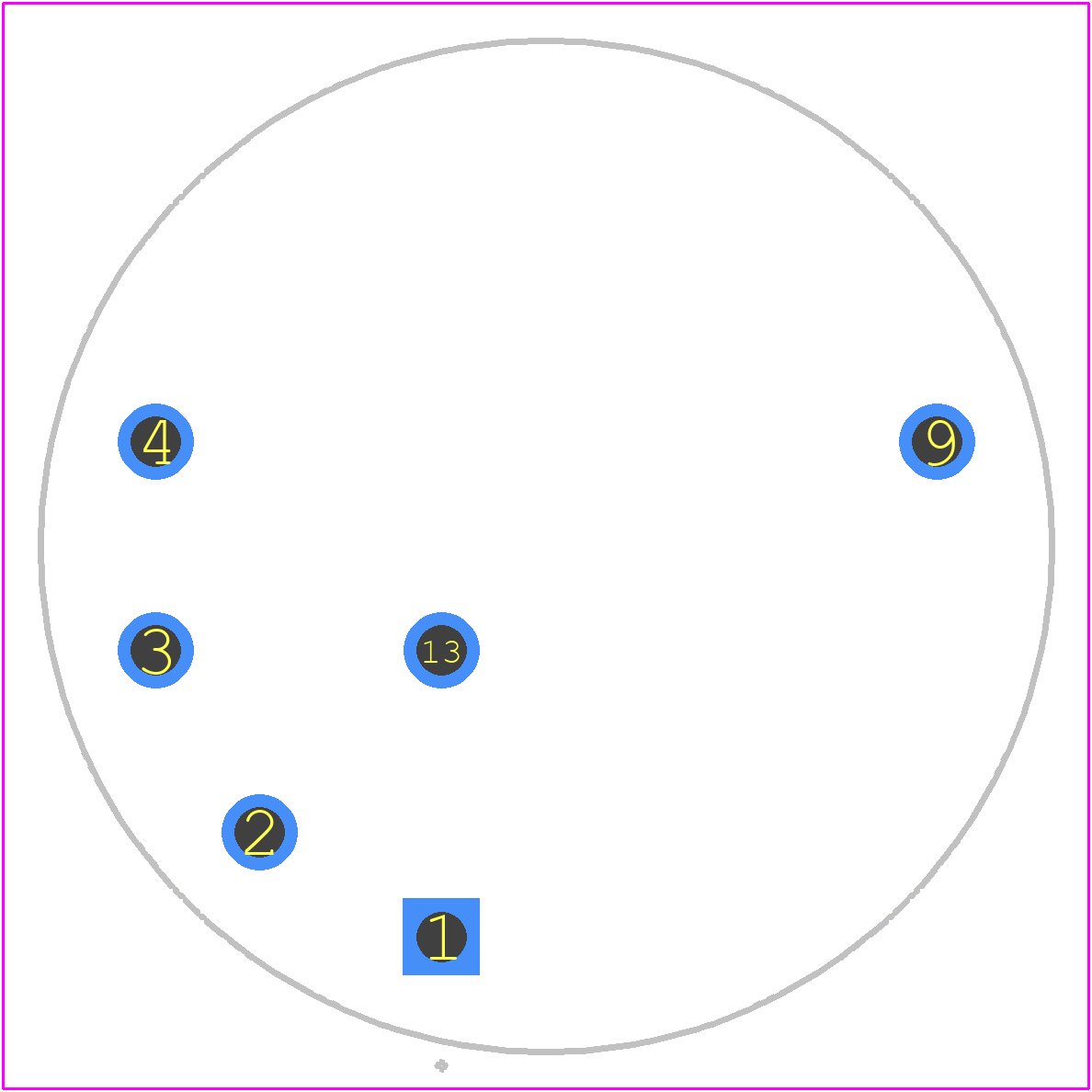

KC14A30.001NPS Details

• Manufacturer Part Number:

  KC14A30.001NPS

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.20

• Manufacturer:

  E-Switch Inc

• YTEOL:

  6

• Actuator Length:

  1.181 inch

• Actuator Material:

  GLASS FILLED NYLON

• Actuator Type:

  ROTARY SHAFT

• Body Height:

  14.1986 mm

• Body Length or Diameter:

  27.5082 mm

• Bushing Length:

  0.315 inch

• Bushing Type:

  3/8-32

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  0.15A@250VAC

• Contact Current(AC)-Max:

  0.15 A

• Contact Current(DC)-Max:

  0.15 A

• Contact (DC) Max Rating R Load:

  0.15A@250VDC

• Contact Resistance:

  0.025 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  250 V

• Dielectric Withstand Volts:

  1000VRMS V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  SILVER

• Housing Material:

  GLASS FILLED NYLON

• Indexing Angle:

  30 deg

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  GLASS FILLED NYLON

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  4

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Surface Mount:

  NO

• Switch Action:

  CIRCULAR

• Switch Function:

  SP4T

• Switch Type:

  ROTARY SWITCH

• Terminal Finish:

  Silver (Ag)

• Terminal Length:

  0.13 inch

• Termination Type:

  SOLDER
