KC1901A - E-Switch

Description: ROTARY, Panel Mount, Through Hole

Download KC1901A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

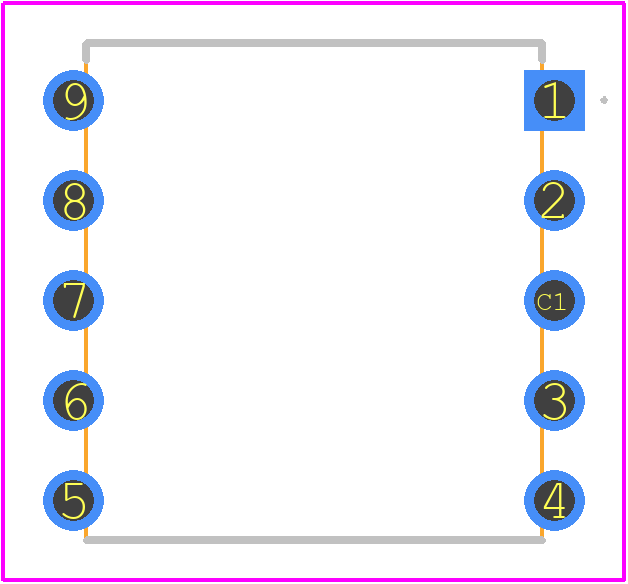

KC1901A - E-Switch PCB footprint - Other - Other - KC1901A-3
click to zoom
3D Models
KC1901A - E-Switch  - 3D model - Other - KC1901A-3
click to zoom

KC1901A Details

  • Manufacturer Part Number:

    KC1901A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    E-Switch Inc

  • Switch Type:

    ROTARY SWITCH

KC1901A Frequently Asked Questions (FAQs)

  • The recommended torque for the KC1901A's screw terminals is 0.5-1.0 N·m (4.4-8.8 lbf·in).
  • Yes, the KC1901A is designed to withstand vibrations up to 10G (10-2000 Hz) and can be used in high-vibration applications.
  • The operating temperature range for the KC1901A is -20°C to 85°C (-4°F to 185°F).
  • Yes, the KC1901A is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The maximum switching current for the KC1901A is 1A per contact.
