KC2-36+ - Mini-Circuits

Description: RF Wireless Misc 2X SMT Multiplier, Output Freq 3400 - 7200 MHz

Download KC2-36+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

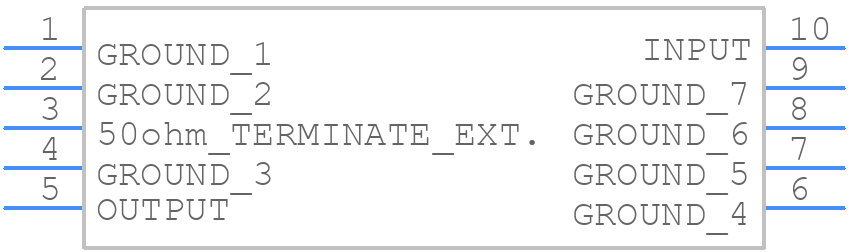

Symbol
KC2-36+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
KC2-36+ - Mini-Circuits PCB footprint - Other - Other - KC2-36+-2
click to zoom
3D Models
KC2-36+ - Mini-Circuits - 3D model - Other - KC2-36+-2
click to zoom

KC2-36+ Details

  • Manufacturer Part Number:

    KC2-36+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    15.5 dB

  • Input Power-Max (CW):

    23 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    7200 MHz

  • Operating Frequency-Min:

    3400 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    FL10,.24

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

KC2-36+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the KC2-36+ is -40°C to +85°C.
  • Yes, the KC2-36+ is designed for high-reliability applications and is suitable for use in aerospace, defense, and other critical systems.
  • The typical insertion loss of the KC2-36+ is less than 1 dB across the frequency range of 10 kHz to 36 GHz.
  • Yes, the KC2-36+ is designed to handle high-power signals up to +20 dBm.
  • The recommended PCB layout for the KC2-36+ involves using a 50-ohm microstrip transmission line with a minimum of 10 mils of clearance around the device.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KC2-36+ Overview

Use the download button to access the KC2-36+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KC2-3, or try a keyword search, such as RF/Microwave Frequency Multipliers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
