The recommended operating temperature range for the KC26A9.501NPF is -20°C to 70°C, although it can withstand storage temperatures from -40°C to 85°C.
Yes, the KC26A9.501NPF is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
The typical actuation force required for the KC26A9.501NPF is around 1.5 N to 2.5 N, although this may vary depending on the specific application and usage.
Yes, the KC26A9.501NPF is designed to withstand high-vibration and high-shock environments, making it suitable for use in industrial, automotive, and other demanding applications.
Yes, the KC26A9.501NPF is available in various termination options, including through-hole, surface-mount, and wire-lead configurations, to accommodate different PCB designs and assembly requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KC26A9.501NPF Overview

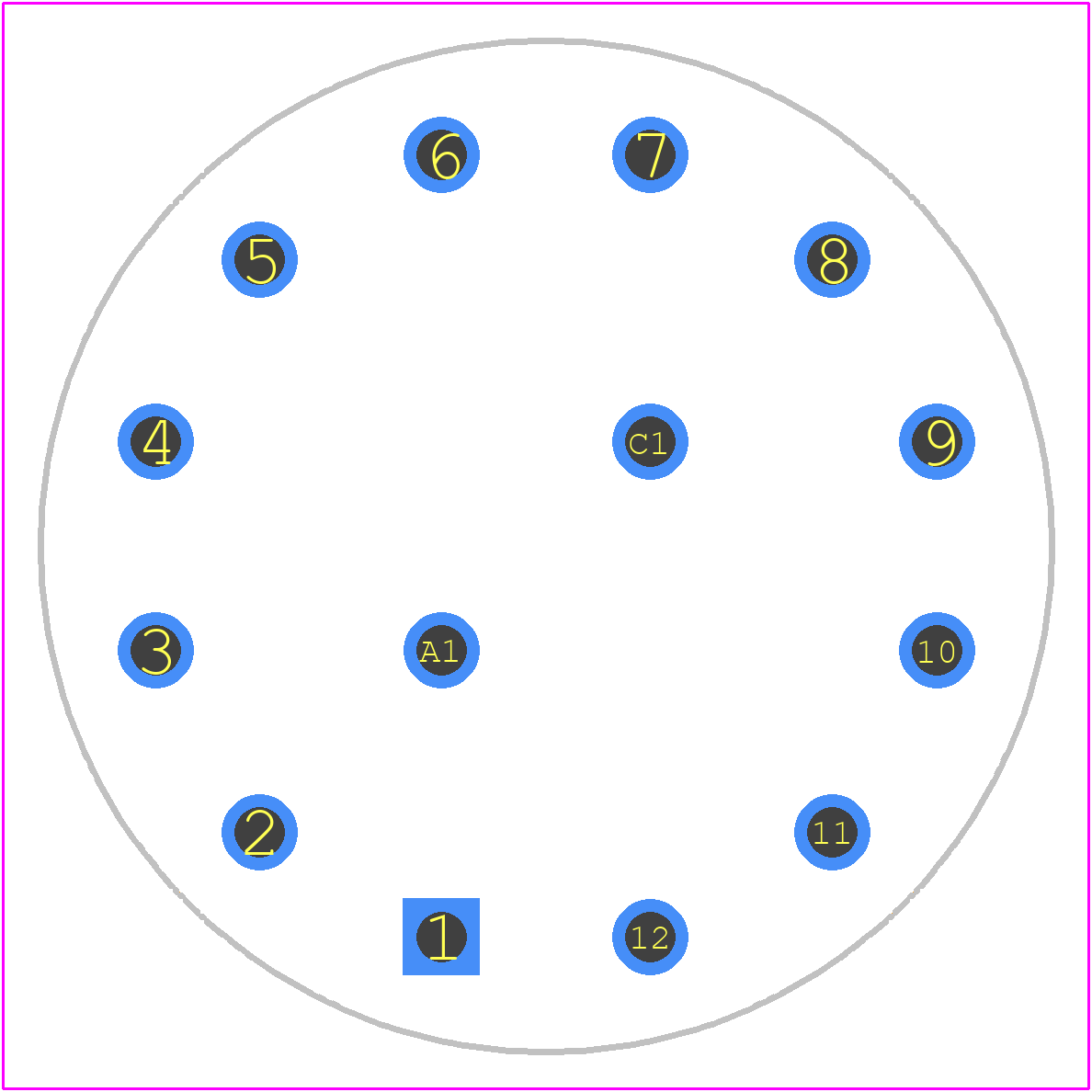

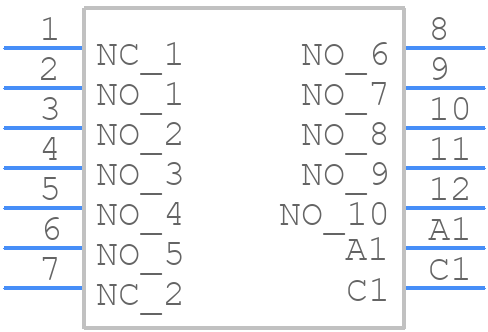

Use the download button to access the KC26A9.501NPF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KC26A,
or try a keyword search, such as Rotary Switches
