KC34A30.001NPS - E-Switch

Description: ROTARY, 350mA, 125VAC , Panel Mount, Through Hole

Download KC34A30.001NPS Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KC34A30.001NPS model

Email notifications will be applied after download.

Send part feedback

Symbol

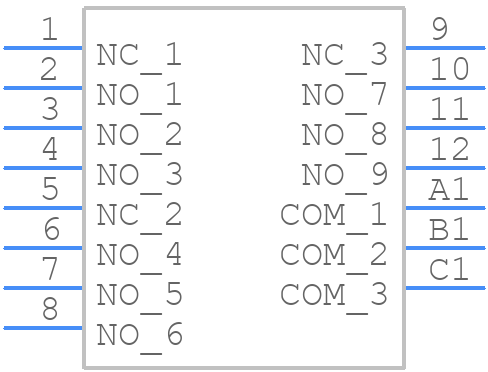

KC34A30.001NPS - E-Switch - PCB symbol

PCB Footprints

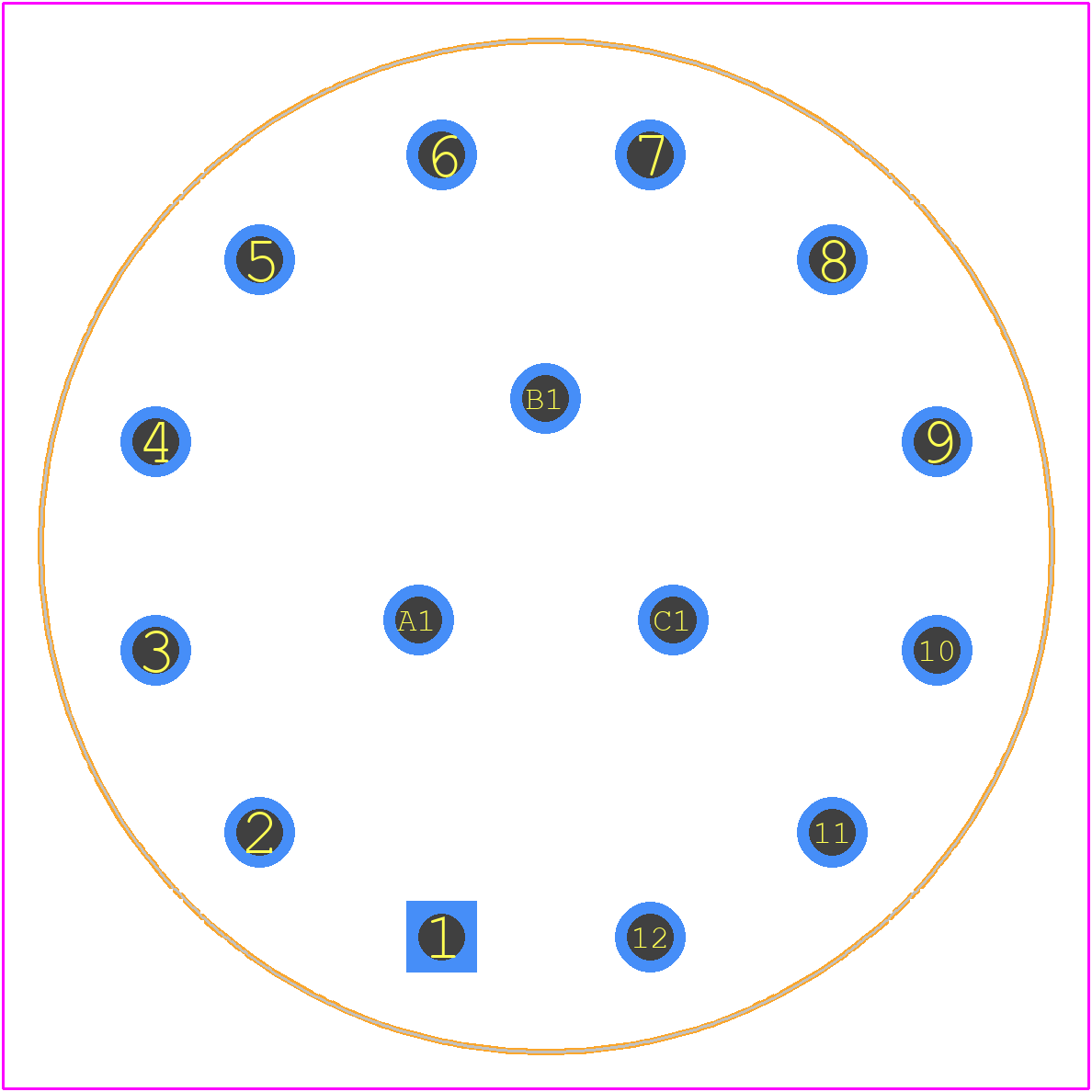

KC34A30.001NPS - E-Switch PCB footprint - Other - Other - KC34A30.001NPS-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for KC34A30.001NPS
Part Number KC34A30.001NPS
Manufacturer E-Switch
Pin Count 15
Part Category Switch
Package Category Other
Footprint Name Other - KC34A30.001NPS-1
Released Date Feb 8, 2020
Last Modified Date Aug 21, 2025 6:36 AM UTC
Pinout / Pin List Click Here (Member Only)

KC34A30.001NPS Details

Manufacturer Part Number:
KC34A30.001NPS
Manufacturer:
E-Switch Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

KC34A30.001NPS Overview

Use the download button to access the KC34A30.001NPS schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like KC34A, or try a keyword search, such as Rotary Switches
