KC355QD7LF224KH01K - Murata Electronics

Description: 0.22 µF ±10% 1000V (1kV) Ceramic Capacitor X7T SMD, J-Lead

Download KC355QD7LF224KH01K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KC355QD7LF224KH01K - Murata Electronics - PCB symbol
click to zoom

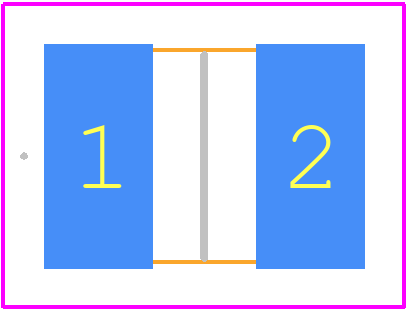

PCB Footprints
KC355QD7LF224KH01K - Murata Electronics PCB footprint - Other - Other - KC355
click to zoom
3D Models
KC355QD7LF224KH01K - Murata Electronics - 3D model - Other - KC355
click to zoom

KC355QD7LF224KH01K Details

  • Manufacturer Part Number:

    KC355QD7LF224KH01K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.20

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    0.22 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    3.7 mm

  • JESD-609 Code:

    e3

  • Length:

    6.1 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    330mm Reel Embossed Tape

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    1000 V

  • Reference Standard:

    AEC-Q200

  • Size Code:

    5750M/2220

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X7T

  • Temperature Coefficient:

    22/-33% ppm/°C

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    5.1 mm

KC355QD7LF224KH01K Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 3.3mm x 2.5mm, with a gap of 0.5mm between pads. Refer to Murata's recommended land pattern document for more details.
  • While the KC355QD7LF224KH01K is rated for operation up to 125°C, it's essential to consider the derating curve and ensure the capacitor's voltage and temperature ratings are not exceeded. Consult with Murata's application engineers for specific guidance.
  • The KC355QD7LF224KH01K is a moisture-sensitive device. Follow Murata's recommended storage and handling procedures, including baking the components before use, to prevent moisture-related damage.
  • The ESR of the KC355QD7LF224KH01K is not explicitly stated in the datasheet. However, according to Murata's application notes, the ESR is typically around 10-20 mΩ at 100 kHz. For more accurate information, contact Murata's technical support.
  • The KC355QD7LF224KH01K is designed to withstand moderate vibration levels. However, for extreme vibration environments, it's recommended to consult with Murata's application engineers to ensure the capacitor's reliability and performance.
