The recommended torque for the KC52A10.001NPS switch's actuator is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.06 lbf·in).
Yes, the KC52A10.001NPS switch is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2 kHz.
The operating temperature range for the KC52A10.001NPS switch is -20°C to 85°C (-4°F to 185°F).
Yes, the KC52A10.001NPS switch is compatible with lead-free soldering processes and meets the requirements of RoHS and REACH directives.
The recommended cleaning process for the KC52A10.001NPS switch involves using a soft brush and a mild detergent solution, followed by a dry air blow or a clean, lint-free cloth.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KC52A10.001NPS Overview

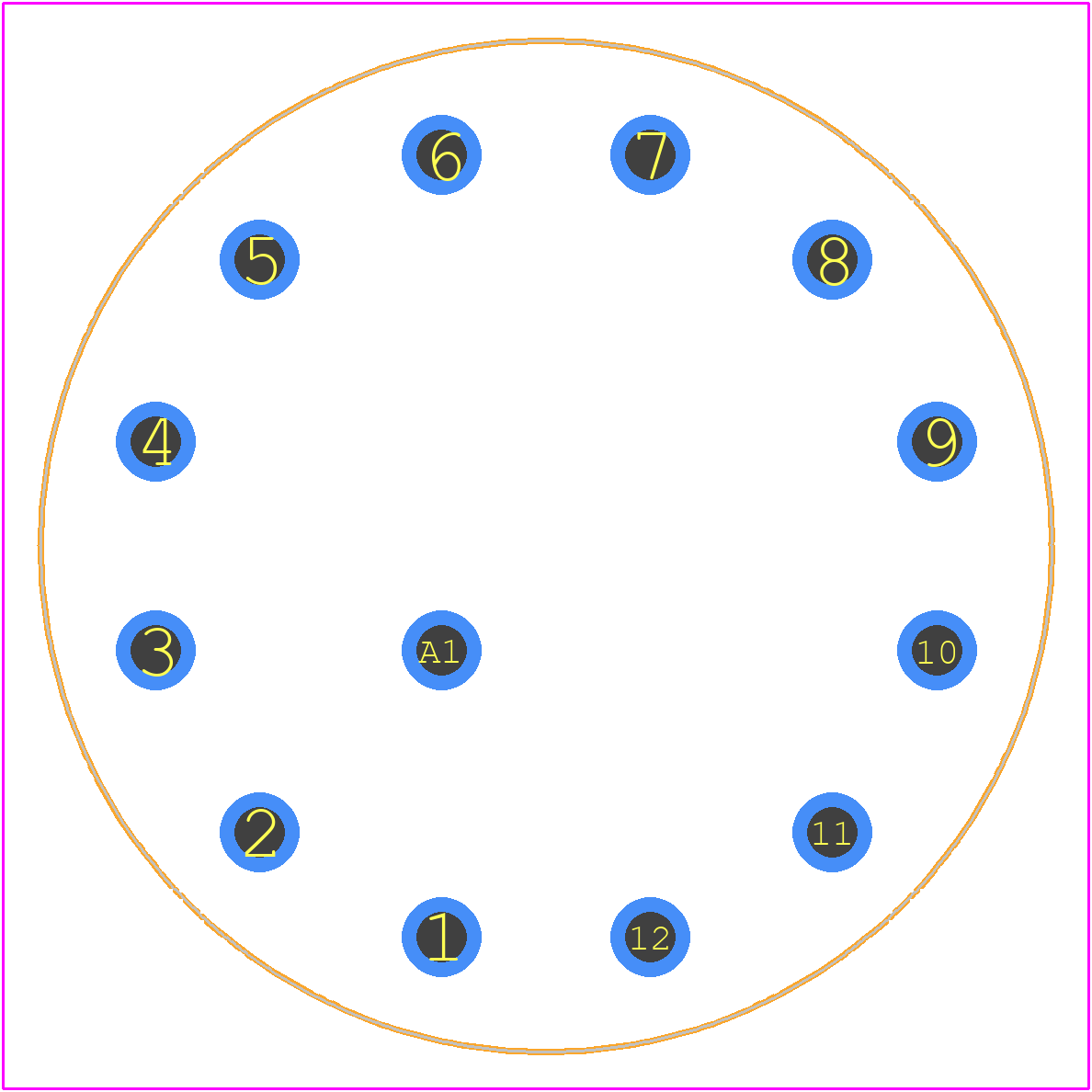

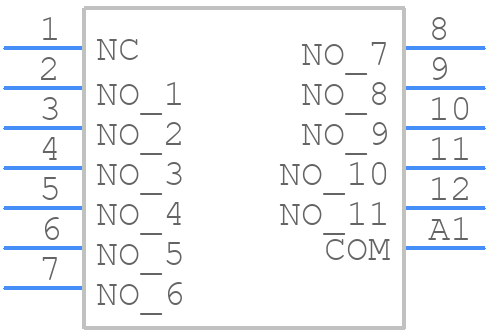

Use the download button to access the KC52A10.001NPS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KC52A,
or try a keyword search, such as Rotary Switches
