- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for KC52A30.001NPS
- Part Number KC52A30.001NPS
- Manufacturer E-Switch
- Pin Count 13
- Part Category Switch
- Package Category Other
- Footprint Name Other - KC52A30.001NPS
- Released Date Feb 18, 2020
- Last Modified Date Jul 27, 2026 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
KC52A30.001NPS Details
-
Manufacturer Part Number:
KC52A30.001NPS
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
E-Switch Inc
-
Switch Type:
ROTARY SWITCH
KC52A30.001NPS Frequently Asked Questions (FAQs)
-
The recommended torque for the KC52A30.001NPS switch is 0.5 N·m to 1.5 N·m (5-15 in-lbs).
-
Yes, the KC52A30.001NPS switch is designed to be IP67 rated, making it suitable for washable or waterproof applications.
-
The operating temperature range for the KC52A30.001NPS switch is -20°C to 85°C (-4°F to 185°F).
-
Yes, the KC52A30.001NPS switch is designed to withstand high-vibration environments, making it suitable for industrial or automotive applications.
-
Yes, the KC52A30.001NPS switch is RoHS and REACH compliant, meeting the European Union's directives for environmental sustainability.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
KC52A30.001NPS Overview

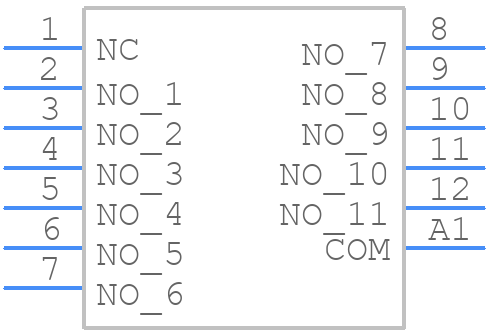

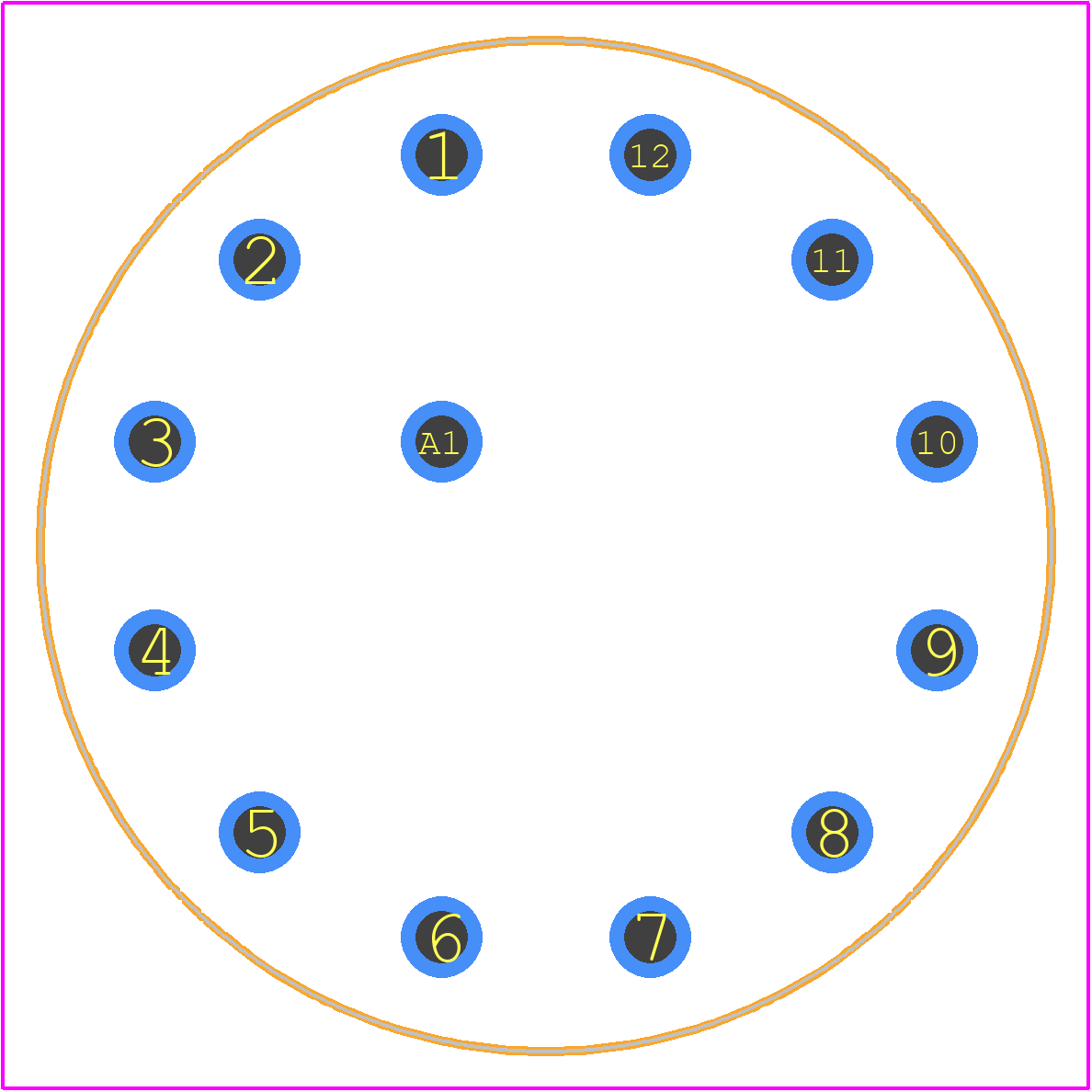

Use the download button to access the KC52A30.001NPS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KC52A,
or try a keyword search, such as Rotary Switches
