KCM55TR71E336MH01K - Murata Electronics

Description: 33 µF ±20% 25V Ceramic Capacitor X7R Stacked SMD, 2 J-Lead

Download KCM55TR71E336MH01K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KCM55TR71E336MH01K - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

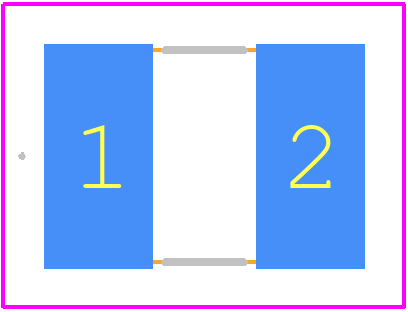

KCM55TR71E336MH01K - Murata Electronics PCB footprint - Other - Other - KCM55
click to zoom

KCM55TR71E336MH01K Details

  • Manufacturer Part Number:

    KCM55TR71E336MH01K

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.20

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    3

  • Capacitance:

    33 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    4.8 mm

  • JESD-609 Code:

    e3

  • Length:

    6.1 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    20%

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    330mm Reel Embossed Tape

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Reference Standard:

    AEC-Q200

  • Size Code:

    5750M/2220

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    5.3 mm

KCM55TR71E336MH01K Frequently Asked Questions (FAQs)

  • The recommended land pattern for the KCM55TR71E336MH01K can be found in Murata's Capacitor Land Pattern document, which provides guidelines for PCB design and layout to ensure reliable mounting and soldering.
  • The Equivalent Series Resistance (ESR) of the KCM55TR71E336MH01K is an important parameter that affects its performance in high-frequency circuits. A lower ESR can reduce energy losses and improve overall circuit efficiency. Murata provides ESR values in the datasheet, and engineers can use these values to simulate and optimize their circuit designs.
  • The KCM55TR71E336MH01K has a rated operating temperature range of -55°C to +125°C, making it suitable for use in high-temperature environments. However, engineers should consider the capacitor's derating characteristics and ensure that the component does not exceed its maximum rated temperature during operation.
  • Murata recommends a soldering profile with a peak temperature of 260°C and a dwell time of 10-30 seconds to ensure reliable soldering and minimize the risk of damage to the capacitor.
  • The capacitance of the KCM55TR71E336MH01K can vary with frequency due to the capacitor's internal impedance and parasitic effects. Murata provides capacitance vs. frequency curves in the datasheet, which engineers can use to simulate and optimize their circuit designs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KCM55TR71E336MH01K Overview

Use the download button to access the KCM55TR71E336MH01K schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like KCM55, or try a keyword search, such as Ceramic Capacitors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
